Fiddler抓取微信公众号数据

星期三, 2018-06-20 22:40 — adminshiping1
写这篇博文的主要目的，记录我使用Fiddler 抓包工具完成公众号请求信息的抓取，并解析抓取的数据的全过程。
准备工作：
下载：Fiddler_5.0.20173.49666_Setup.exe
1.安装Fiddler_5.0.20173.49666_Setup.exe，很简单，打开效果如下图：

2.生成证书文件FiddlerRoot.cer

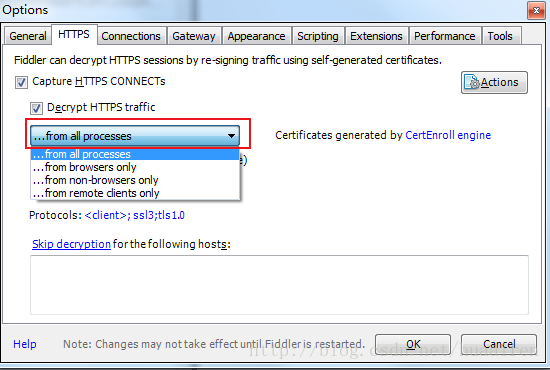

     在菜单栏中依次选择 【Tools】->【Options】->【HTTPS】，勾上如下图的选项

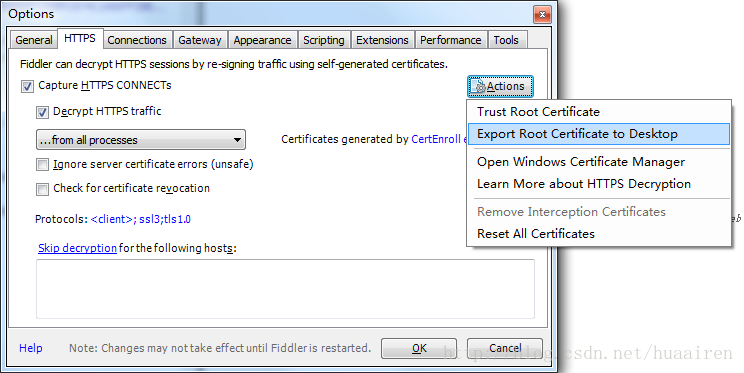

    然后点击【Actions】选择导出证书到桌面

3.手动安装证书
   在fiddler目录下有一个makecert.exe ，创建myTest.bat 内容如下：
[html] view plain copy

  1. makecert.exe -r -ss my -n “CN=DO_NOT_TRUST_FiddlerRoot, O=DO_NOT_TRUST, OU=Created by http://www.fiddler2.com” -sky signature -eku 1.3.6.1.5.5.7.3.1 -h 1 -cy authority -a sha1 -m 120 -b 09/05/2012

4.抓取我想要的微信公众号的数据
  a.原理：fiddler工具为我们提供了请求前的方法和请求响应后的方法
[html] view plain copy

  1. OnBeforeRequest()，OnBeforeResponse()

  b.配置抓取规则

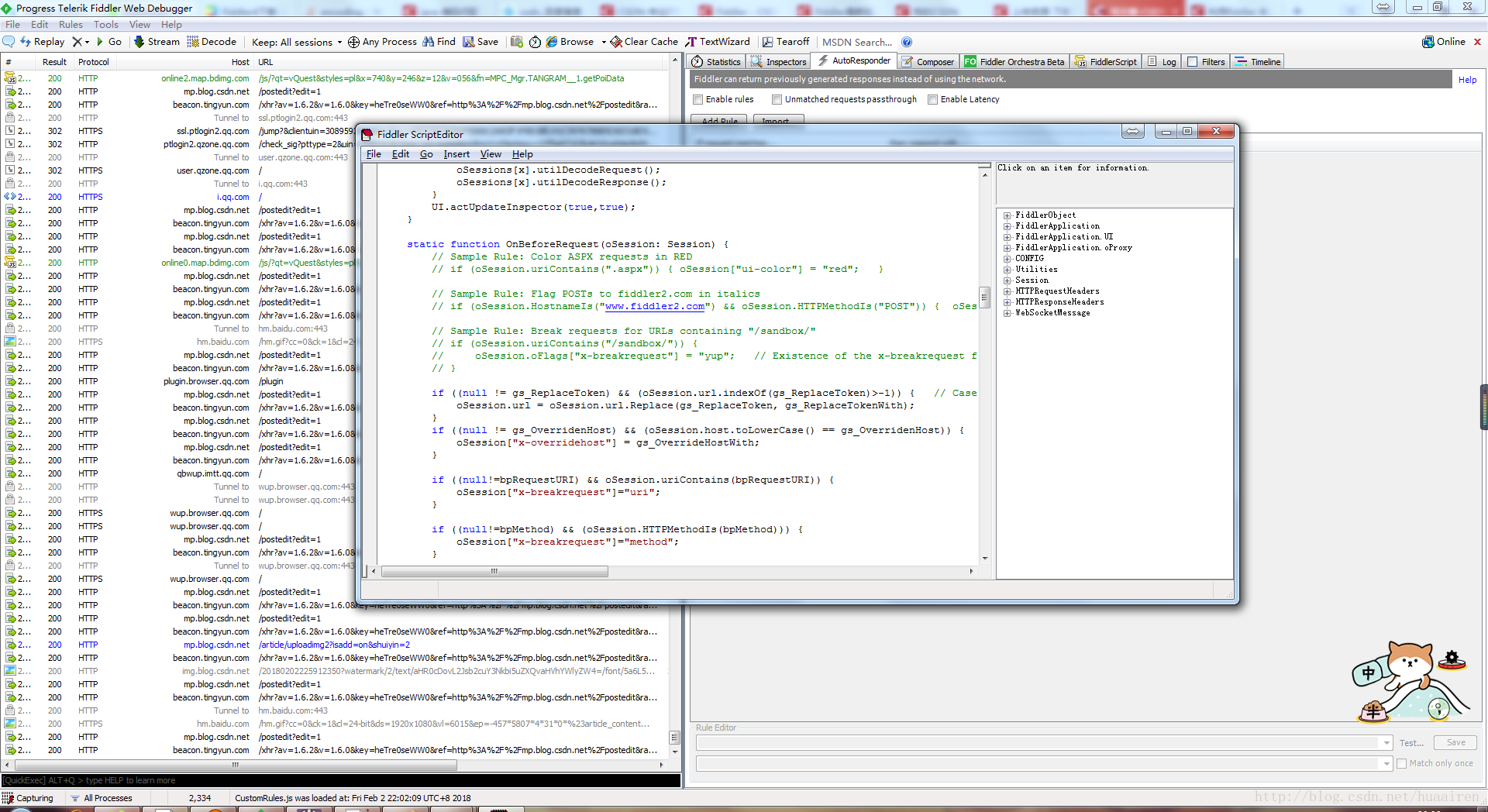

     选择菜单【rules 】--- >【customs rules】选项，然后重启一下进入到如图所示的界面

     修改OnBeforeRequest()
[html] view plain copy

  1. <span style="color:#663300;"> if (oSession.fullUrl.Contains("mp.weixin.qq.com"))

  2.  {

  3.      var fso;

  4.      var file;

  5.      fso = new ActiveXObject("Scripting.FileSystemObject");

  6.      //文件保存路径，可自定义

  7.      file = fso.OpenTextFile("c:\\Sessions.txt",8 ,true, true);

  8.      file.writeLine("Request url: " + oSession.url);

  9.      file.writeLine("Request header:" + "\n" + oSession.oRequest.headers);

  10.      file.writeLine("Request body: " + oSession.GetRequestBodyAsString());

  11.      file.writeLine("\n");

  12.      file.close();

  13.  }</span>

   修改OnBeforeResponse()
[html] view plain copy

  1. <span style="color:#663300;">if(oSession.fullUrl.Contains("weixin/searchShiFu.php"))

  2.         {

  3.          oSession.utilDecodeResponse();//消除保存的请求可能存在乱码的情况

  4.             var fso;

  5.             var file;

  6.             fso=new ActiveXObject("Scripting.FileSystemObject");

  7.             //文件保存路径，可自定义

  8.

  9.             file=fso.OpenTextFile("d:\\Response.txt",8,true,true);

  10.             //file.writeLine("Response code: "+oSession.responseCode);

  11.             file.writeLine("Response body: "+oSession.GetResponseBodyAsString());

  12.             file.writeLine("\n");

  13.             file.close();

  14.         }</span>

   保存退出，重启fiddler即可使用。
5.解析抓取的内容
   a.响应获取的解析数据d:\\Response.txt中，内容如下：
[html] view plain copy

  1. Response body: {"nickname":"秦人","totalTimes":33,"todayTimes":2,"total":598,"thisNum":8,"yuanjin":1,"oneSF":[{"juli":"2.1 公里","name":"马帅军","phone":"15529016011","address":"陕西西安未央区建章路","longitude_S":"108.848384","latitude_S":"34.318548","jianjie":"工龄4年。     施工20～25元／卷","s1":"","s2":"","s3":"","sa":"","p1":"","p2":"","p3":"","pa":"","uid":"12527","weixin":"0","headimgurl":""},{"juli":"2.4 公里","name":"张帅","phone":"13571547952","address":"陕西西安施工范围。全。","longitude_S":"108.893215","latitude_S":"34.332735","jianjie":"无妨壁纸25元一卷。长纤，蚕丝等30元一卷。壁画20元一平。壁布10元一平。","s1":"","s2":"","s3":"","sa":"","p1":"","p2":"","p3":"","pa":"","uid":"14235","weixin":"1","headimgurl":"http://wx.qlogo.cn/mmopen/PiajxSqBRaEJkMDHthV4HGnCWtEk7TCTvDOQUId5uvHaOZkzxN8nRJv8C7YicFia8KibNhvyjW..."},{"juli":"2.9 公里","name":"黄师傅","phone":"13289380958","address":"西安西安市","longitude_S":"108.894098","latitude_S":"34.305800","jianjie":"工龄：6年，本人从事墙纸粘贴行业已有6年，积累了丰富的墙纸施工方面的经验和技术能对各种高中","s1":"","s2":"","s3":"","sa":"","p1":"","p2":"","p3":"","pa":"","uid":"2248","weixin":"0","headimgurl":""},{"juli":"3 公里","name":"尚俊","phone":"18802920027","address":"陕西西安未央区汉城街办西查村","longitude_S":"108.900890","latitude_S":"34.331328","jianjie":"6年工龄，无纺纸20其他25。团队6人，随时准备24小时为您服务。","s1":"","s2":"","s3":"","sa":"","p1":"","p2":"","p3":"","pa":"","uid":"13814","weixin":"0","headimgurl":""},{"juli":"3.2 公里","name":"刘小虎","phone":"18710629117","address":"陕西咸阳武功县普集镇令新村","longitude_S":"108.904032","latitude_S":"34.316132","jianjie":"","s1":"","s2":"","s3":"","sa":"","p1":"","p2":"","p3":"","pa":"","uid":"11609","weixin":"0","headimgurl":""},{"juli":"3.6 公里","name":"张跃武","phone":"13772014639","address":"陕西西安莲湖区莲湖区邓家村小学","longitude_S":"108.880513","latitude_S":"34.292046","jianjie":"贴了6年壁纸，工费是根据纸的材料而定，合作搭档两人，","s1":"","s2":"","s3":"","sa":"","p1":"","p2":"","p3":"","pa":"","uid":"5794","weixin":"0","headimgurl":""},{"juli":"3.6 公里","name":"小何","phone":"15291480050","address":"陕西西安凤城四路","longitude_S":"108.909152","latitude_S":"34.324399","jianjie":"","s1":"","s2":"","s3":"","sa":"","p1":"","p2":"","p3":"","pa":"","uid":"13726","weixin":"0","headimgurl":""},{"juli":"3.6 公里","name":"魏师傅","phone":"15291814440","address":"西安西安市","longitude_S":"108.904098","latitude_S":"34.306800","jianjie":"工龄：7年，专业","s1":"","s2":"","s3":"","sa":"","p1":"","p2":"","p3":"","pa":"","uid":"2241","weixin":"0","headimgurl":""}]}

   我的目的是从上面的响应数据获取到name,phone,addrss的信息；
   备注：默认生成的Response.txt文件的字符集是ucs-2 little endian ,在java中的字符集类型为：UTF-16LE

   b.解析Response.txt文本内容，输出name,phone,addrss信息到D:\\Handle_Response.txt
     我用java实现文本内容的解析，代码如下：
[java] view plain copy

  1. package com.wang.readText;

  2.

  3. import java.io.BufferedReader;

  4. import java.io.BufferedWriter;

  5. import java.io.File;

  6. import java.io.FileInputStream;

  7. import java.io.FileOutputStream;

  8. import java.io.InputStreamReader;

  9. import java.io.OutputStreamWriter;

  10. import java.io.UnsupportedEncodingException;

  11. import java.util.ArrayList;

  12. import java.util.HashMap;

  13. import java.util.List;

  14. import java.util.Map;

  15. import java.util.Set;

  16.

  17. import com.alibaba.fastjson.JSONArray;

  18. import com.alibaba.fastjson.JSONObject;

  19.

  20. public class ReadTextUtils {

  21.

  22.     private static List<UserInfo> resultList = new ArrayList<>();

  23.     private static String SRC_PATH = "D:/Response.txt";

  24.     private static String OUT_PATH = "D:/Handle_Response.txt";

  25.

  26.     public static void main(String[] args) {

  27.

  28.

  29.         String srcPath = args[0];

  30.         String outPath = args[1];

  31. //      String srcPath = SRC_PATH;

  32. //      String outPath = OUT_PATH;

  33.         readTxtContent(srcPath);

  34.         writeTxtContent(outPath);

  35.

  36.     }

  37.

  38.     public static void readTxtContent(String srcPath){

  39.

  40.         /* 读取数据 */

  41.         try {

  42.             BufferedReader br = new BufferedReader(new InputStreamReader(new FileInputStream(new File(srcPath)),"UTF-16LE"));

  43.             String lineTxt = null;

  44.             while ((lineTxt = br.readLine()) != null) {

  45.                 if(!"".equals(lineTxt)) {

  46.                     lineTxt = lineTxt.substring(15);

  47.                     JSONObject object = (JSONObject) JSONObject.parse(lineTxt);

  48.                     if(!object.get("oneSF").equals(0)) {

  49.                         JSONArray jsonArray =  (JSONArray)object.get("oneSF");

  50.                         String jsonarrayString = jsonArray.toJSONString();

  51.                         List<UserInfo> userList=JSONArray.parseArray(jsonarrayString, UserInfo.class);

  52.                         resultList.addAll(userList);

  53.                         System.out.println("--read line data count---"+userList.size());

  54.                     }

  55.                 }

  56.             }

  57.             br.close();

  58.         } catch (Exception e) {

  59.             System.err.println("read errors :" + e);

  60.         }

  61.     }

  62.

  63.     public  static List<UserInfo> quchongfu() {

  64.         HashMap <String,UserInfo> userMap = new HashMap<>();

  65.         List<UserInfo> userInfoList = new ArrayList<>();

  66.         for(UserInfo userInfo :resultList) {

  67.             userMap.put(userInfo.getPhone(), userInfo);

  68.         }

  69.         Set<String> keySet = userMap.keySet();

  70.         for(String str:keySet) {

  71.             userInfoList.add(userMap.get(str));

  72.         }

  73.         return userInfoList;

  74.     }

  75.     public static void writeTxtContent(String outPath){

  76.         /* 输出数据 */

  77.         try {

  78.             BufferedWriter bw = new BufferedWriter(new OutputStreamWriter(new FileOutputStream(new File(outPath)),"UTF-8"));

  79.

  80.             bw.write("name\t\t    phone\t\t\t    address");

  81.             bw.newLine();

  82.             for(UserInfo userInfo :quchongfu()){

  83.                 bw.write(userInfo.getName()+"\t\t "+userInfo.getPhone()+"\t\t "+userInfo.getAddress());

  84.                 bw.newLine();

  85.             }

  86.             bw.close();

  87.         } catch (Exception e) {

  88.             System.err.println("write errors :" + e);

  89.         }

  90.     }

  91.

  92.

  93. }

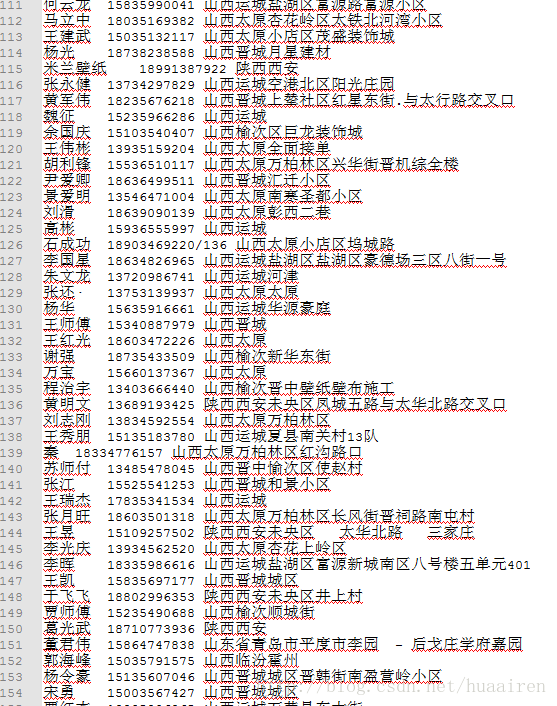

   输出的文本内容如下图：

  6.一键式执行数据处理：

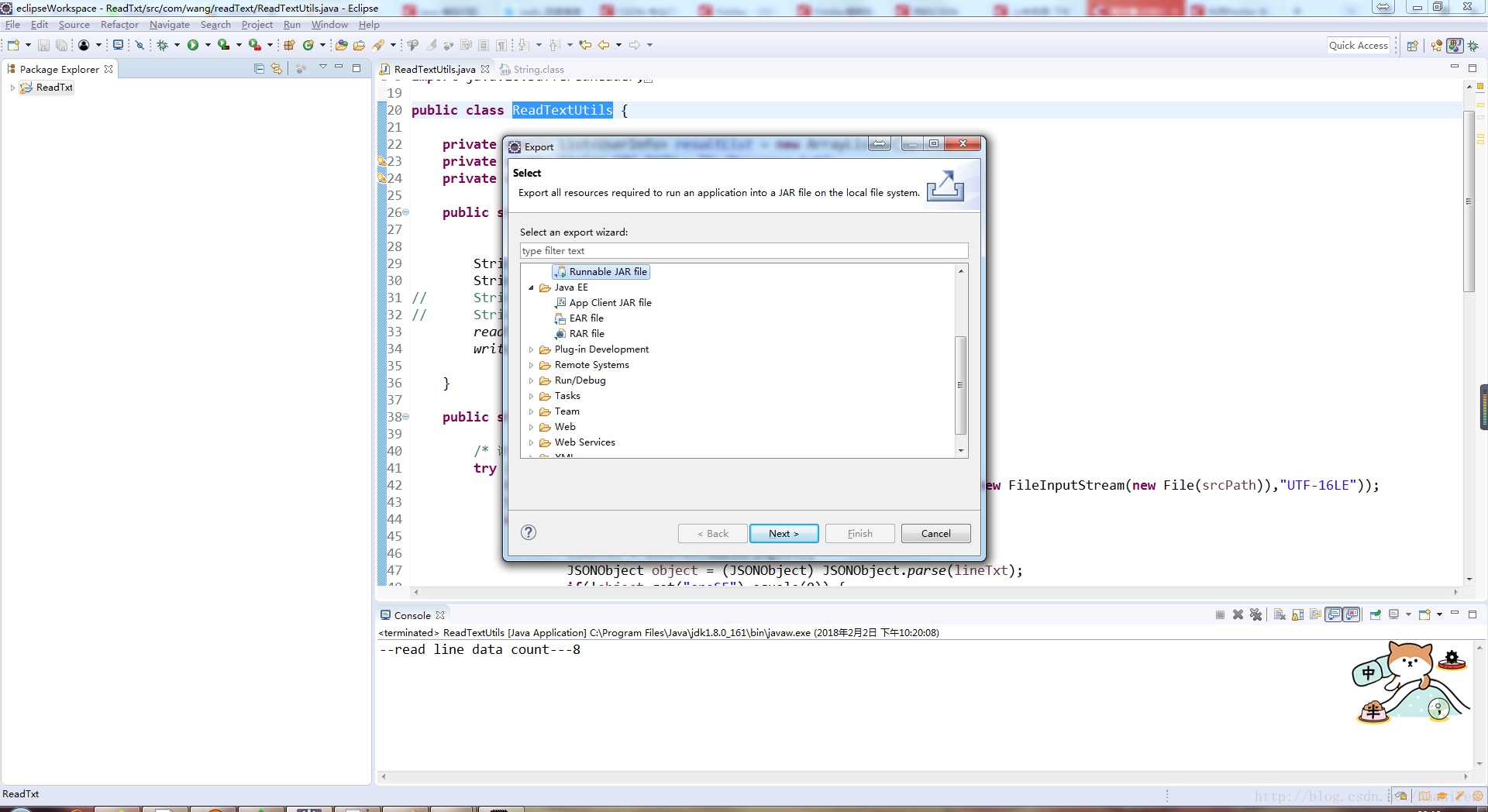

     a.将ReadTextUtils类打包成可执行的jar;

    b.编写简单的runReadTxt.bat文件,内容如下：

[html] view plain copy

  1. @echo off

  2. echo -----------read infos-----------

  3. java -jar %cd%\"readTxt.jar" %cd%\"Response.txt" %cd%\"Handle_Response.txt"

  4. echo ---------------finish!!!-----------------------------

  5. PAUSE

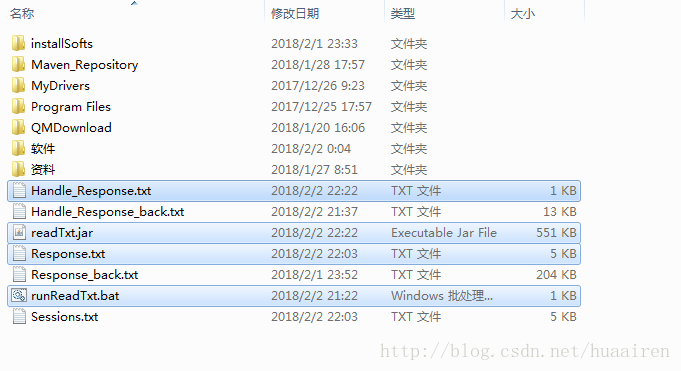

   c.整体一键式运行小工具搞定；备注：运行jar的前提是要安装java运行环境

     希望能帮到你，欢迎指正！


来自  https://blog.csdn.net/huaairen/article/details/79243760
