一、使用场景说明
项目中需要实现一个地址查询框，类似于在谷歌地图中输入地址，根据定义的规则实时检索并展现匹配的地址的功能（当然比那简单的多），为了减小数据库压力和提高检索效率，现采用apache solr实现。由于对性能和可靠性可用性等没太高的要求，所以此处没有考虑集群，只是一个简单的单机版环境。
二、概念介绍
三、安装启动和中文分词配置
1、下载solr-4.10.2.zip，解压得到solr-4.10.2目录
2、将solr-4.10.2\example下的solr目录拷贝出来作为SOLR_HOME（即配各个collection配置和数据存储的目录），此处拷贝到C:\Users\jiayu\Desktop\solr\下并重命名为solr_home
3、将solr-4.10.2\dist下的solr-4.10.2.war拷贝到tomcat的webapps目录下，启动tomcat后会自动解压，然后此war包即可删除，解压后默认目录名称为solr-4.10.2，为方便此处将其名称改为solr，然后在tomcat\webapps\solr\META-INF下创建context.xml（tomcat配置：可在tomcat的\conf\Catalina\localhost目录下创建与应用上下文同名的xml文件或在应用上下文的META-INF目录下创建context.xml），xml内容如下：
- <?xml version="1.0"encoding="UTF-8" standalone="yes"?>
- <ContextdocBase="D:\setups\apache-tomcat-7.0.54-others\webapps\solr.war"debug="0" crossContext="true" >
- <Environmentname="solr/home" type="java.lang.String"value="C:\Users\jiayu\Desktop\solr\solr_home"override="true" />
- </Context>
4、启动tomcat，此时会发现报出来一个错误：Error filterStart，查看tomcat日志：localhost.log，报缺少slf4j包，将solr-4.10.2\example\lib\ext下的所有jar包（此处没有校验具体需要哪个）拷贝到solr/WEB-INF/lib目录下，同时在WEB-INF下建立classes目录，建立log4j.properties文件，内容如下
- # Logging level
- solr.log=logs/
- log4j.rootLogger=INFO, file, CONSOLE
- log4j.appender.CONSOLE=org.apache.log4j.ConsoleAppender
- log4j.appender.CONSOLE.layout=org.apache.log4j.PatternLayout
- log4j.appender.CONSOLE.layout.ConversionPattern=%-4r[%t] %-5p %c %x \u2013 %m%n
- #- size rotation with log cleanup.
- log4j.appender.file=org.apache.log4j.RollingFileAppender
- log4j.appender.file.MaxFileSize=4MB
- log4j.appender.file.MaxBackupIndex=9
- #- File to log to and log format
- log4j.appender.file.File=${solr.log}/solr.log
- log4j.appender.file.layout=org.apache.log4j.PatternLayout
- log4j.appender.file.layout.ConversionPattern=%-5p- %d{yyyy-MM-dd HH:mm:ss.SSS}; %C; %m\n
- log4j.logger.org.apache.zookeeper=WARN
- log4j.logger.org.apache.hadoop=WARN
- # set to INFO to enable infostream logmessages
- log4j.logger.org.apache.solr.update.LoggingInfoStream=OFF
重新启动，访问localhost:8080/solr/admin.html，出现如下界面说明启动成功
配置中文分词
下载IKAnalyzer2012FF_u1.jar，并放在solr/WEB-INF/lib目录下
编辑solr_home/collection1/conf目录下的scheme.xml文件，添加如下内容：
- <fieldType name="text_ik"class="solr.TextField">
- <analyzertype="index" isMaxWordLength="false"class="org.wltea.analyzer.lucene.IKAnalyzer"/>
- <analyzertype="query" isMaxWordLength="true"class="org.wltea.analyzer.lucene.IKAnalyzer"/>
- </fieldType>
<fieldname="quesContent" type="text_ik" />

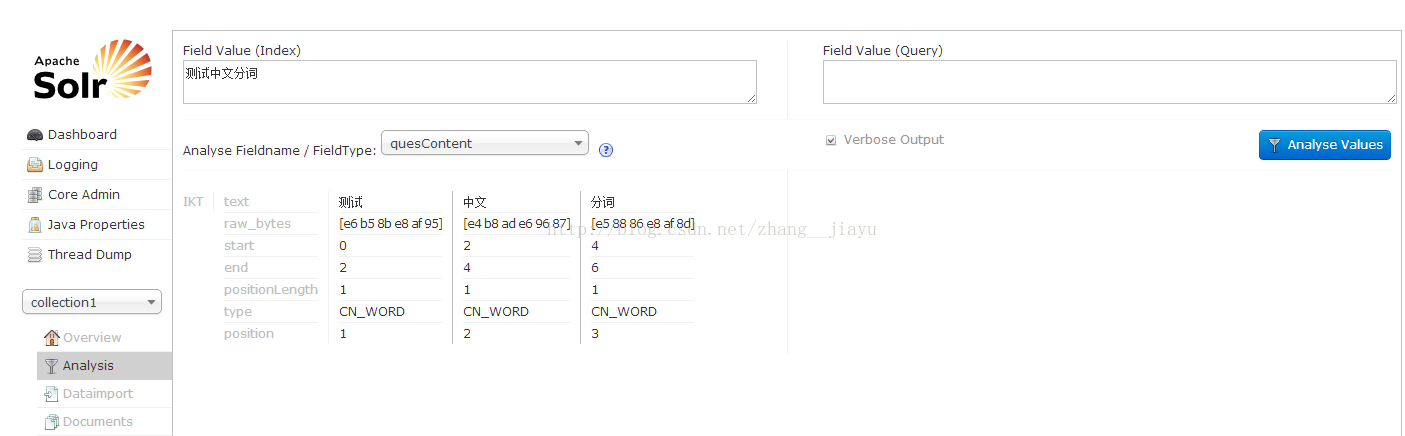

标明quesContent字段的分词由中文分词器去完成，打开solr管理页面，选择collection1（core selector），要分词的字段选择刚配置的quesContent，输入一段中文，点击分析，可看到分词效果
至此，配置工作完成，下面介绍一下如何从数据库导入数据，和如何利用它提供的javaAPI插入和查询数据
四、从数据库导入数据
将solr-4.10.2\dist目录下的solr-dataimporthandler-4.10.2.jar和solr-dataimporthandler-extras-4.10.2.jar拷贝到solr应用程序的WEB-INF/lib目录下，由于此处是从ORACLE中导入数据，还要将Oracle驱动oracle6.jar拷贝到lib下
在solr_home目录/collection1/conf下创建data-config.xml，内容如下
- <dataConfig>
- <dataSource driver="oracle.jdbc.driver.OracleDriver"url="jdbc:oracle:thin:@192.168.32.152:1521:star"user="ecms" password="ecms"/>
- <document>
- <entity name="addressen" query="select id,name fromaddressen">
- <fieldcolumn="id" name="id"/>
- <field column="name"name="name"/>
- </entity>
- </document>
- </dataConfig>
在/collection1/conf/solrconfig.xml中添加
- <requestHandlername="/dataimport"class="org.apache.solr.handler.dataimport.DataImportHandler">
- <lstname="defaults">
- <strname="config">data-config.xml</str>
- </lst>
- </requestHandler>

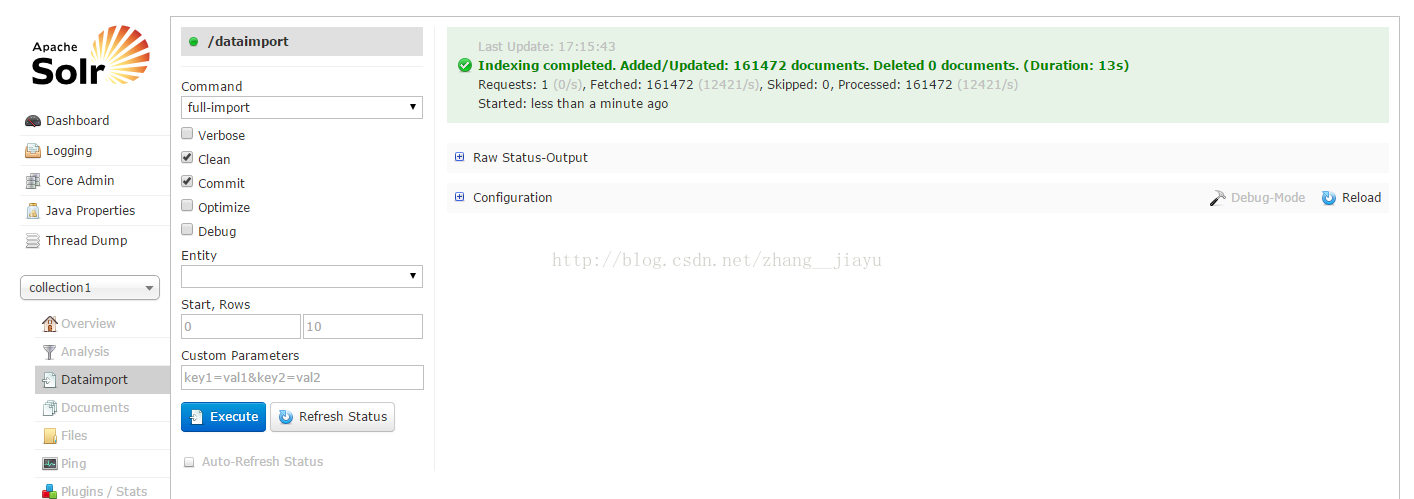

启动后，登录solr管理界面，选择collection1，选择Dataimport选项，点击Execute按钮，如果配置无误的话数据便可导入进来
五、solr-solrj-4.10.2.jar提供的java API使用
为了保证数据库中数据和solr中的数据同步，采用定时任务，每隔一段时间通过API调用，将数据库中数据同步到solr中。由于地址表中存放着各个国家的数据，在同步时，需要将数据按国家分开存放，所以对于每个国家的地址信息，单独创建一个core，在solr_home下有一个配置好的default_core目录，在插入地址时，判断如果此条地址的国家（比如country01）还没有对应的core，将创建目录country01，同时将default_core中的配置信息拷贝到country01中。
以下为完整代码：
- package com.star.basic.system.domain;
- import java.io.Serializable;
- import java.util.List;
- import org.apache.solr.client.solrj.beans.Field;
- public class SolrStoredAddress implements Serializable {
- /**
- *
- */
- private static final long serialVersionUID = 6192432007244661406L;
- @Field
- private String id;
- @Field
- private String name;
- @Field
- private String countryName;
- @Field
- private List<String> saleAreas;
- @Field
- private List<String> operators;
- public String getId() {
- return id;
- }
- public void setId(String id) {
- this.id = id;
- }
- public String getName() {
- return name;
- }
- public void setName(String name) {
- this.name = name;
- }
- public String getCountryName() {
- return countryName;
- }
- public void setCountryName(String countryName) {
- this.countryName = countryName;
- }
- public List<String> getSaleAreas() {
- return saleAreas;
- }
- public void setSaleAreas(List<String> saleAreas) {
- this.saleAreas = saleAreas;
- }
- public List<String> getOperators() {
- return operators;
- }
- public void setOperators(List<String> operators) {
- this.operators = operators;
- }
- }
- package com.star.basic.system.solr.utils;
- import java.io.IOException;
- import java.util.ArrayList;
- import java.util.HashMap;
- import java.util.List;
- import java.util.Map;
- import java.util.Map.Entry;
- import org.apache.solr.client.solrj.SolrQuery;
- import org.apache.solr.client.solrj.SolrServerException;
- import org.apache.solr.client.solrj.impl.HttpSolrServer;
- import org.apache.solr.client.solrj.response.QueryResponse;
- import com.star.basic.system.domain.SolrStoredAddress;
- public class SolrAddressUtils {
- public static boolean available = true;
- private static final String SOLR_URL = "http://127.0.0.1:8081/solr";
- private static HttpSolrServer server = new HttpSolrServer(SOLR_URL);
- /**
- * 将数据同步到solr中
- * @param addresses
- * @throws SolrServerException
- * @throws IOException
- */
- public static void addAddresses(List<SolrStoredAddress> addresses)
- throws SolrServerException, IOException {
- available = false;
- //将地址信息按国家分类
- Map<String, List<SolrStoredAddress>> map = new HashMap<String, List<SolrStoredAddress>>();
- for (SolrStoredAddress address : addresses) {
- if (!map.containsKey(address.getCountryName())) {
- map.put(address.getCountryName(),
- new ArrayList<SolrStoredAddress>());
- }
- map.get(address.getCountryName()).add(address);
- }
- for (Entry<String, List<SolrStoredAddress>> entry : map.entrySet()) {
- server.setBaseURL(SOLR_URL);
- if (!SolrUtils.hasCore(entry.getKey(), server)) {
- SolrUtils.createCore(entry.getKey(), server);
- }
- server.setBaseURL(SOLR_URL + "/" + entry.getKey());
- server.deleteByQuery("*:*"); // CAUTION: deletes everything!
- server.addBeans(entry.getValue());
- server.commit();
- }
- available = true;
- }
- public static List<SolrStoredAddress> queryAddresses(String addrName,
- String countryName) {
- if (!available) {
- return null;
- }
- SolrQuery query = new SolrQuery();
- query.setQuery("name:" + addrName);
- query.setStart(0);
- query.setRows(5);
- server.setBaseURL(SOLR_URL + "/" + countryName);
- QueryResponse response;
- try {
- response = server.query(query);
- return response.getBeans(SolrStoredAddress.class);
- } catch (SolrServerException e) {
- e.printStackTrace();
- }
- return null;
- }
- public static void main(String[] args) throws SolrServerException,
- IOException {
- // List<SolrStoredAddress> addrs = new ArrayList<SolrStoredAddress>();
- // for (int i = 0; i < 10; i++) {
- // SolrStoredAddress add = new SolrStoredAddress();
- // add.setId(new Long(i));
- // add.setName("add" + i);
- // add.setCountryName("country" + i);
- // addrs.add(add);
- // }
- // SolrAddressUtils.addAddresses(addrs);
- server.setBaseURL(SOLR_URL + "/" + "country1");
- List<SolrStoredAddress> addrs = new ArrayList<SolrStoredAddress>();
- for (int i = 0; i < 10000; i++) {
- SolrStoredAddress add = new SolrStoredAddress();
- add.setId(String.valueOf(i));
- add.setName("add" + i);
- add.setCountryName("country1");
- addrs.add(add);
- }
- SolrAddressUtils.addAddresses(addrs);
- }
- }
- package com.star.basic.system.solr.utils;
- import java.io.File;
- import java.io.IOException;
- import org.apache.solr.client.solrj.SolrServer;
- import org.apache.solr.client.solrj.SolrServerException;
- import org.apache.solr.client.solrj.request.CoreAdminRequest;
- import org.apache.solr.common.util.NamedList;
- import com.star.osgi.utils.FileUtils;
- public class SolrUtils {
- private static final String DEFAULT_CORE_NAME = "default_core";
- /**
- * 判断server中是否已经有对应的core
- *
- * @param coreName
- * @param server
- * @return
- * @throws SolrServerException
- * @throws IOException
- */
- public static boolean hasCore(String coreName, SolrServer server)
- throws SolrServerException, IOException {
- NamedList<Object> responseData = CoreAdminRequest
- .getStatus(coreName, server).getCoreStatus().get(coreName);
- String name = (String) responseData.get("name");
- if (name != null && name.equals(coreName)) {
- return true;
- }
- return false;
- }
- /**
- * 创建core：从默认的core中拷贝所需文件，调用接口
- *
- * @param coreName
- * @param server
- * @throws SolrServerException
- * @throws IOException
- */
- public static void createCore(String coreName, SolrServer server)
- throws SolrServerException, IOException {
- NamedList<Object> list = CoreAdminRequest
- .getStatus(DEFAULT_CORE_NAME, server).getCoreStatus()
- .get(DEFAULT_CORE_NAME);
- String defaultCorePath = (String) list.get("instanceDir");
- String solrHome = defaultCorePath.substring(0,
- defaultCorePath.indexOf(DEFAULT_CORE_NAME));
- File corePath = new File(solrHome, coreName);
- if (!corePath.exists()) {
- corePath.mkdir();
- }
- File confPath = new File(corePath.getAbsolutePath(), "conf");
- if (!confPath.exists()) {
- confPath.mkdir();
- }
- FileUtils.copyDir(new File(defaultCorePath, "conf"),
- new File(corePath.getAbsolutePath(), "conf"));
- CoreAdminRequest.createCore(coreName, corePath.getAbsolutePath(),
- server);
- }
- }
- 查询
- @RequestMapping("indexSearch.do")
- @ResponseBody
- public List<Address> indexSearch(@RequestParam(value = "name",required = false) String name,HttpServletRequest request) throws SolrServerException{
- Country country = (Country) request.getSession().getAttribute("country");
- if(name == null){
- return null;
- }
- List<SolrStoredAddress> addrs = SolrAddressUtils.querySolrAddresses(name,"country1");
- return convertToAddress(addrs);
- }
- Spring Data Solr也提供了对Solr接口的封装，简化接口调用，同时提供了事务等支持，大致测试配置如下，如有兴趣，可参考官方文档
- <?xml version="1.0" encoding="UTF-8"?>
- <beans xmlns="http://www.springframework.org/schema/beans"
- xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:solr="http://www.springframework.org/schema/data/solr"
- xsi:schemaLocation="http://www.springframework.org/schema/beans
- http://www.springframework.org/schema/beans/spring-beans.xsd
- http://www.springframework.org/schema/data/solr
- http://www.springframework.org/schema/data/solr/spring-solr-1.0.xsd">
- <solr:repositories base-package="solr.test.spring.solr" />
- <solr:solr-server id="solrServer" url="http://localhost:8081/solr" />
- <bean id="solrTemplate" class="org.springframework.data.solr.core.SolrTemplate">
- <constructor-arg index="0" ref="solrServer" />
- </bean>
- <!-- <solr:embedded-solr-server id="solrServer" solrHome="classpath:solr/test/spring/solr"
- /> -->
- </beans>
- package solr.test.spring.solr;
- import java.util.List;
- import org.springframework.data.repository.CrudRepository;
- import com.star.basic.system.domain.SolrStoredAddress;
- public interface AddressSolrRepository extends CrudRepository<SolrStoredAddress, Long> {
- List<SolrStoredAddress> findByName(String name);
- }
参考资料
solr wiki http://wiki.apache.org/solr/Solrj
Apache Solr 4.5.1环境搭建及MYSQL数据导入 http://blog.csdn.net/weijonathan/article/details/16961299
Spring Data Solr http://docs.spring.io/spring-data/data-solr/docs/current/reference/html/
