[root@localhost php-5.4.13]# ls /usr/local/php

bin etc include lib php

bin 二进制文件

etc 配置文件

include 头文件

lib 库文件

php php/man 手册

[root@localhost php-5.4.13]#

[root@localhost php-5.4.13]# ls /usr/local/php/bin #下面的都是php的命令行工具

pear peardev pecl phar phar.phar php php-cgi php-config phpize

[root@localhost php-5.4.13]#

为 php的其它的子项目所提供的配置文件的存放路径

[root@localhost php-5.4.13]# ls /usr/local/php/etc

pear.conf

[root@localhost php-5.4.13]#

[root@localhost php-5.4.13]# ls /usr/local/php/php

man

[root@localhost php-5.4.13]#

[root@localhost php-5.4.13]# cp php.ini-production /etc/php.ini # 在 ./configure 有个参数是 --with-config-file-path=/etc 表示在 /etc下面找php.ini文件

一般.ini遵循法则与 yum 的配置文件 mysql的配置文件差不多 ,都是分段式的

[root@localhost php-5.4.13]#

[root@localhost php-5.4.13]# vim /etc/php.ini (稍微看了一下)

让 apache与php结合起来工作

[root@localhost php-5.4.13]# vim /etc/httpd/httpd.conf

里面是 httpd.conf 的部分内容

LoadModule php5_module modules/libphp5.so # php作为apache的一个模块???

........................................

AddType application/x-compress .Z

AddType application/x-gzip .gz .tgz

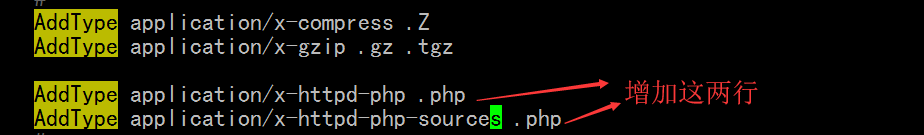

#下面这两行是自行添加的

AddType application/x-httpd-php .php #这是让支持php格式的页面能够理解处理php结尾的页面文件

AddType application/x-httpd-php-source .phps # 这是让支持php源码格式的文件

........................................

DirectoryIndex index.php index.html #这里加上index.php

</IfModule>

# Server-pool management (MPM specific)

#Include /etc/httpd/extra/httpd-mpm.conf

# Multi-language error messages

#Include /etc/httpd/extra/httpd-multilang-errordoc.conf

# Fancy directory listings

#Include /etc/httpd/extra/httpd-autoindex.conf #自动索引

# Language settings

#Include /etc/httpd/extra/httpd-languages.conf #支持语言

# User home directories

#Include /etc/httpd/extra/httpd-userdir.conf #支持用户个人家目录下使用网页文件的

# Real-time info on requests and configuration

#Include /etc/httpd/extra/httpd-info.conf

# Virtual hosts

#Include /etc/httpd/extra/httpd-vhosts.conf

# Local access to the Apache HTTP Server Manual

#Include /etc/httpd/extra/httpd-manual.conf

# Distributed authoring and versioning (WebDAV)

#Include /etc/httpd/extra/httpd-dav.conf

# Various default settings

#Include /etc/httpd/extra/httpd-default.conf

# Configure mod_proxy_html to understand HTML4/XHTML1

Include /etc/httpd/extra/proxy-html.conf

</IfModule>

# Secure (SSL/TLS) connections

#Include /etc/httpd/extra/httpd-ssl.conf #想使用ssl ,需要启用它还要启用 mod_ssl.so 模块

# Note: The following must must be present to support

# starting without SSL on platforms with no /dev/random equivalent

# but a statically compiled-in mod_ssl.

SSLRandomSeed startup builtin

SSLRandomSeed connect builtin

</IfModule>

# uncomment out the below to deal with user agents that deliberately

# violate open standards by misusing DNT (DNT *must* be a specific

# end-user choice)

#<IfModule setenvif_module>

#BrowserMatch "MSIE 10.0;" bad_DNT

#</IfModule>

#<IfModule headers_module>

#RequestHeader unset DNT env=bad_DNT

#</IfModule>

[root@localhost php-5.4.13]# httpd -t

Syntax OK

[root@localhost php-5.4.13]# service httpd restart

停止 httpd： [确定]

启动 httpd： [确定]

[root@localhost php-5.4.13]#

[root@localhost php-5.4.13]# cd /usr/local/apache/htdocs/

[root@localhost htdocs]# pwd

/usr/local/apache/htdocs

[root@localhost htdocs]#

[root@localhost htdocs]# ls

index.html

[root@localhost htdocs]# mv index.html index.php

[root@localhost htdocs]#

[root@localhost htdocs]# vim index.php

<html><body><h1>It works! my apache</h1></body></html>

<?php

echo phpinfo();

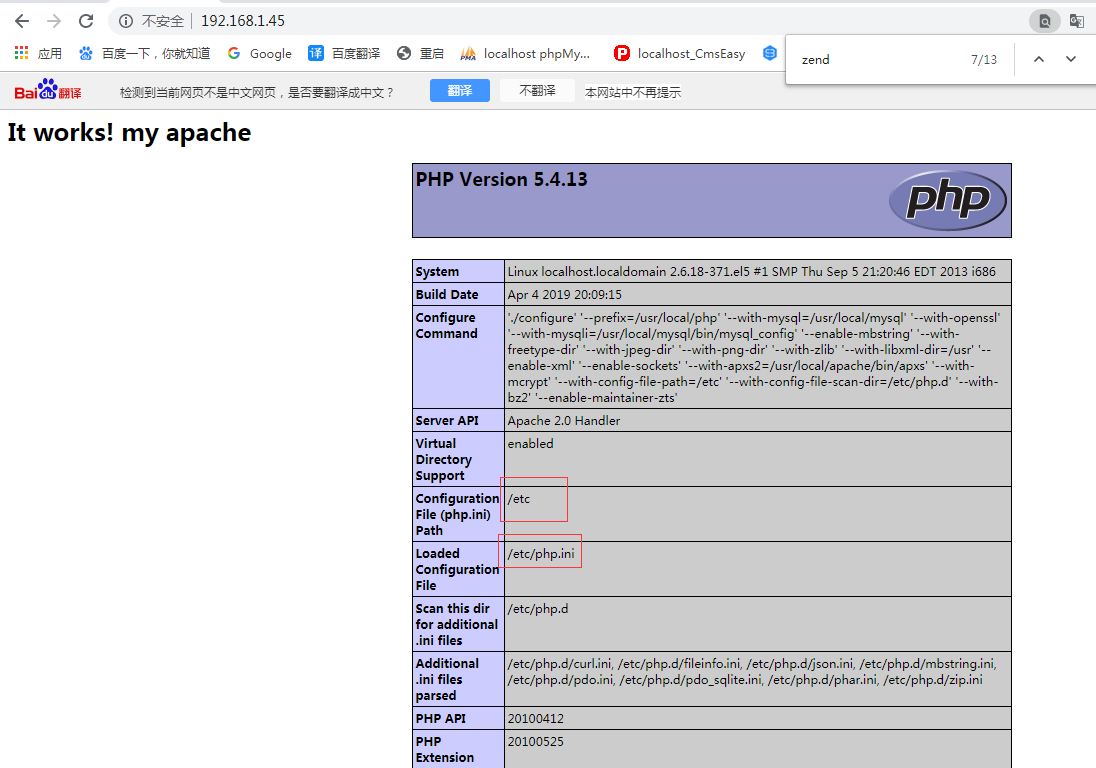

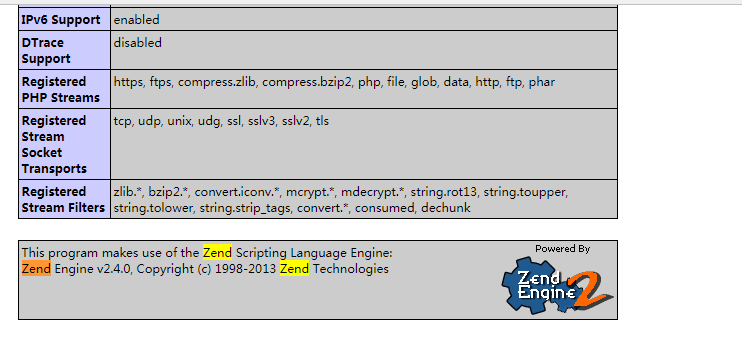

http://192.168.1.45/

[root@localhost htdocs]# vim index.php

<html><body><h1>It works! my apache</h1></body></html>

<?php

//echo phpinfo();

$conn = mysql_connect('localhost','root','');

if($conn)

echo "Success...";

else

echo "Failure...";

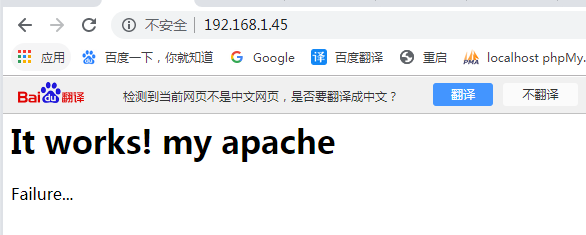

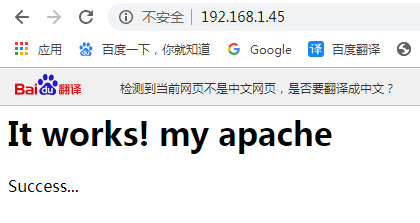

http://192.168.1.45/

关闭mysql

[root@localhost htdocs]# service mysqld stop

Shutting down MySQL. [确定]

[root@localhost htdocs]#

http://192.168.1.45/

能够跟php5.4结合的只有Xcache 2.0 及以后的版本

https://xcache.lighttpd.net/

https://xcache.lighttpd.net/wiki/Release-2.0.0

https://xcache.lighttpd.net/pub/Releases/2.0.0/xcache-2.0.0.tar.gz

https://xcache.lighttpd.net/pub/Releases/2.0.0/xcache-2.0.0.tar.bz2

[root@localhost ~]# wget https://xcache.lighttpd.net/pub/Releases/2.0.0/xcache-2 .0.0.tar.bz2

--2019-04-29 02:29:34-- https://xcache.lighttpd.net/pub/Releases/2.0.0/xcache-2 .0.0.tar.bz2

正在解析主机 xcache.lighttpd.net... 188.40.103.19, 2a01:4f8:221:2708::2

Connecting to xcache.lighttpd.net|188.40.103.19|:443... 已连接。

ERROR: cannot verify xcache.lighttpd.net's certificate, issued by `/C=US/O=Let's Encrypt/CN=Let's Encrypt Authority X3':

Unable to locally verify the issuer's authority.

ERROR: certificate common name `lighttpd.net' doesn't match requested host name `xcache.lighttpd.net'.

To connect to xcache.lighttpd.net insecurely, use `--no-check-certificate'.

无法建立 SSL 连接。

[root@localhost ~]# wget https://xcache.lighttpd.net/pub/Releases/2.0.0/xcache-2 .0.0.tar.bz2 --no-check-certificate

--2019-04-29 02:29:50-- https://xcache.lighttpd.net/pub/Releases/2.0.0/xcache-2 .0.0.tar.bz2

正在解析主机 xcache.lighttpd.net... 188.40.103.19, 2a01:4f8:221:2708::2

Connecting to xcache.lighttpd.net|188.40.103.19|:443... 已连接。

WARNING: cannot verify xcache.lighttpd.net's certificate, issued by `/C=US/O=Let 's Encrypt/CN=Let's Encrypt Authority X3':

Unable to locally verify the issuer's authority.

WARNING: certificate common name `lighttpd.net' doesn't match requested host nam e `xcache.lighttpd.net'.

已发出 HTTP 请求，正在等待回应... 200 OK

长度：108614 (106K) [application/x-gtar-compressed]

Saving to: `xcache-2.0.0.tar.bz2'

100%[======================================>] 108,614 26.2K/s in 4.0s

2019-04-29 02:30:03 (26.2 KB/s) - `xcache-2.0.0.tar.bz2' saved [108614/108614]

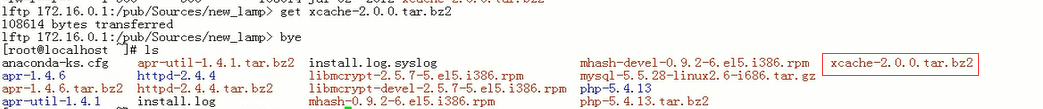

[root@localhost ~]# tar xf xcache-2.0.0.tar.bz2

[root@localhost ~]# cd xcache-2.0.0

[root@localhost xcache-2.0.0]#

Xcache是php的模块(是php的扩展) 安装php的时候有些扩展是可以指定,有些扩展可以单独安装

[root@localhost xcache-2.0.0]# man phpize

Cannot open the message catalog "man" for locale "zh_CN.UTF-8"

(NLSPATH="<none>")

No manual entry for phpize

[root@localhost xcache-2.0.0]#

[root@localhost xcache-2.0.0]# man -M /usr/local/php/php/ phpize

Cannot open the message catalog "man" for locale "zh_CN.UTF-8"

(NLSPATH="<none>")

No manual entry for phpize

[root@localhost xcache-2.0.0]#

[root@localhost xcache-2.0.0]# ls /usr/local/php/php/man/man1/

php.1 php-config.1 phpize.1

[root@localhost xcache-2.0.0]#

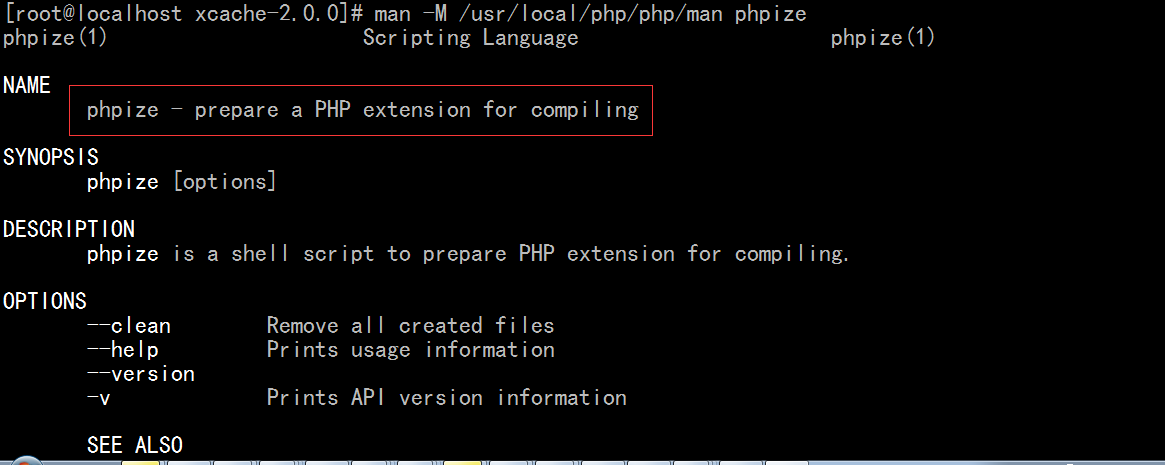

[root@localhost xcache-2.0.0]# man -M /usr/local/php/php/man phpize

(要相关的php命令 (phpize)来加载这个扩展,而且得识别这个扩展)

phpize : phpize - prepare a PHP extension for compiling 准备好一个php扩展以便进行编译的

几乎所有的php扩展在编译前都要执行这个 phpize的命令的

[root@localhost xcache-2.0.0]# /usr/local/php/bin/phpize

Configuring for:

PHP Api Version: 20100412

Zend Module Api No: 20100525

Zend Extension Api No: 220100525

[root@localhost xcache-2.0.0]#

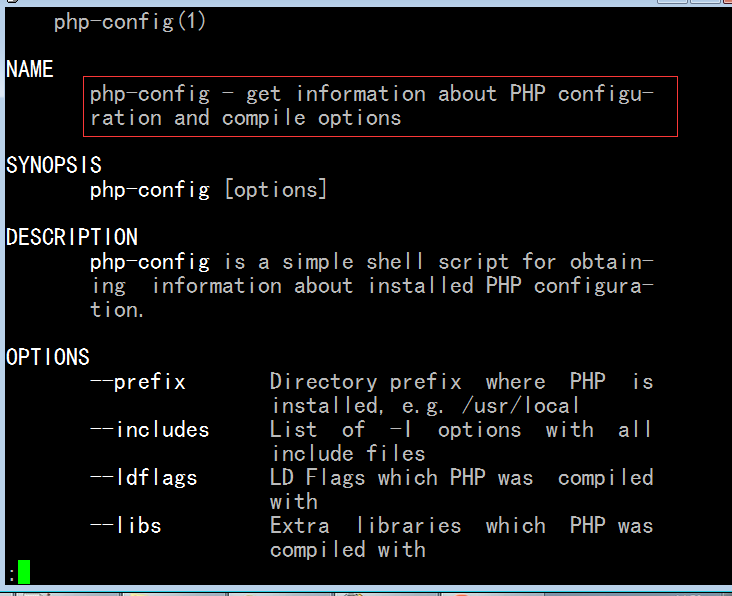

[root@localhost xcache-2.0.0]# man -M /usr/local/php/php/man php-config

php-config - get information about PHP configu-

ration and compile options

能够获得php的配置信息以及编译时所使用的选项信息

xcache 要根据 php-config 来获取我们的php安装时到底启用了哪些功能

[root@localhost xcache-2.0.0]# pwd

/root/xcache-2.0.0

[root@localhost xcache-2.0.0]# ./configure --help | less

`configure' configures this package to adapt to many kinds of systems.

Usage: ./configure [OPTION]... [VAR=VALUE]...

To assign environment variables (e.g., CC, CFLAGS...), specify them as

VAR=VALUE. See below for descriptions of some of the useful variables.

Defaults for the options are specified in brackets.

Configuration:

-h, --help display this help and exit

--help=short display options specific to this package

--help=recursive display the short help of all the included packages

-V, --version display version information and exit

-q, --quiet, --silent do not print `checking...' messages

--cache-file=FILE cache test results in FILE [disabled]

-C, --config-cache alias for `--cache-file=config.cache'

-n, --no-create do not create output files

--srcdir=DIR find the sources in DIR [configure

dir or `..']

Installation directories:

--prefix=PREFIX install architecture-independent files in PREFIX

[/usr/local] # 这个不用指,它会默认安装到php的扩展目录里面去

--exec-prefix=EPREFIX install architecture-dependent files in EPREFIX

[PREFIX]

By default, `make install' will install all the files in

`/usr/local/bin', `/usr/local/lib' etc. You can specify

an installation prefix other than `/usr/local' using `--prefix',

for instance `--prefix=$HOME'.

For better control, use the options below.

Fine tuning of the installation directories:

--bindir=DIR user executables [EPREFIX/bin]

--sbindir=DIR system admin executables [EPREFIX/sbin]

--libexecdir=DIR program executables [EPREFIX/libexec]

--datadir=DIR read-only architecture-independent data [PREFIX/share]

--sysconfdir=DIR read-only single-machine data [PREFIX/etc]

--sharedstatedir=DIR modifiable architecture-independent data [PREFIX/com]

--localstatedir=DIR modifiable single-machine data [PREFIX/var]

--libdir=DIR object code libraries [EPREFIX/lib]

--includedir=DIR C header files [PREFIX/include]

--oldincludedir=DIR C header files for non-gcc [/usr/include]

--infodir=DIR info documentation [PREFIX/info]

--mandir=DIR man documentation [PREFIX/man]

System types:

--build=BUILD configure for building on BUILD [guessed]

--host=HOST cross-compile to build programs to run on HOST [BUILD]

--target=TARGET configure for building compilers for TARGET [HOST]

Optional Features:

--disable-FEATURE do not include FEATURE (same as --enable-FEATURE=no)

--enable-FEATURE[=ARG] include FEATURE [ARG=yes]

--enable-xcache Include XCache support. #启用 xcache的功能

--enable-xcache-constant XCache: Handle new constants made by php compiler (e.g.: for __halt_compiler)

--enable-xcache-optimizer XCache: (N/A)

--enable-xcache-coverager XCache: Enable code coverage dumper, useful for testing php scripts

--enable-xcache-assembler XCache: (N/A)

--enable-xcache-disassembler XCache: Enable opcode to php variable dumper, NOT for production server

--enable-xcache-encoder XCache: (N/A)

--enable-xcache-decoder XCache: (N/A)

--enable-xcache-test XCache: Enable self test - FOR DEVELOPERS ONLY!!

--enable-xcache-dprint XCache: Enable debug print functions - FOR DEVELOPERS ONLY!!

--enable-shared=PKGS build shared libraries default=yes

--enable-static=PKGS build static libraries default=yes

--enable-fast-install=PKGS optimize for fast installation default=yes

--disable-libtool-lock avoid locking (might break parallel builds)

Optional Packages:

--with-PACKAGE[=ARG] use PACKAGE [ARG=yes]

--without-PACKAGE do not use PACKAGE (same as --with-PACKAGE=no)

--with-libdir=NAME Look for libraries in .../NAME rather than .../lib

--with-php-config=PATH Path to php-config php-config # 其它大部分不用指,我们一般只需要使用这个--with-php-config 和 --enable-xcache 即可

--with-gnu-ld assume the C compiler uses GNU ld default=no

--with-pic try to use only PIC/non-PIC objects default=use both

--with-tags=TAGS include additional configurations automatic

Some influential environment variables:

CC C compiler command

CFLAGS C compiler flags

LDFLAGS linker flags, e.g. -L<lib dir> if you have libraries in a

nonstandard directory <lib dir>

CPPFLAGS C/C++ preprocessor flags, e.g. -I<include dir> if you have

headers in a nonstandard directory <include dir>

CPP C preprocessor

Use these variables to override the choices made by `configure' or to help

it to find libraries and programs with nonstandard names/locations.

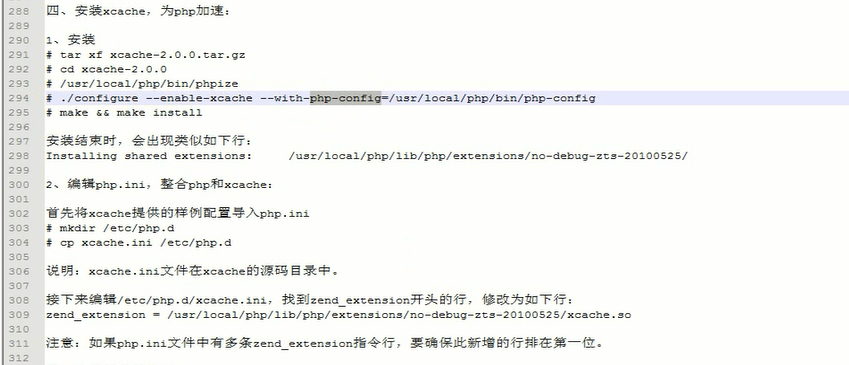

[root@localhost xcache-2.0.0]# ./configure --enable-xcache --with-php-config=/usr/local/php/bin/php-config

//配置过程

..........................

-with-php-config=/usr/local/php/bin/php-config

[root@localhost xcache-2.0.0]# make

//编译过程 (中间有警告不管它)

..........................

[root@localhost xcache-2.0.0]# make install #安装过程

Installing shared extensions: /usr/local/php/lib/php/extensions/no-debug-zts-20100525/

[root@localhost xcache-2.0.0]#

[root@localhost xcache-2.0.0]# pwd

/root/xcache-2.0.0

[root@localhost xcache-2.0.0]# cat xcache.ini

[xcache-common]

;; install as zend extension (recommended), normally "$extens ion_dir/xcache.so"

zend_extension = /usr/local/lib/php/extensions/non-debug-non- zts-xxx/xcache.so

; zend_extension_ts = /usr/local/lib/php/extensions/non-debug -zts-xxx/xcache.so

;; For windows users, replace xcache.so with php_xcache.dll

zend_extension_ts = c:/php/extensions/php_xcache.dll

;; or install as extension, make sure your extension_dir sett ing is correct

; extension = xcache.so

;; or win32:

; extension = php_xcache.dll

[xcache.admin]

xcache.admin.enable_auth = On

xcache.admin.user = "mOo"

; xcache.admin.pass = md5($your_password)

xcache.admin.pass = ""

[xcache]

; ini only settings, all the values here is default unless ex plained

; select low level shm/allocator scheme implemenation

xcache.shm_scheme = "mmap"

; to disable: xcache.size=0

; to enable : xcache.size=64M etc (any size > 0) and your sys tem mmap allows

xcache.size = 60M

; set to cpu count (cat /proc/cpuinfo |grep -c processor)

xcache.count = 1

; just a hash hints, you can always store count(items) > slot s

xcache.slots = 8K

; ttl of the cache item, 0=forever

xcache.ttl = 0

; interval of gc scanning expired items, 0=no scan, other val ues is in seconds

xcache.gc_interval = 0

; same as aboves but for variable cache

xcache.var_size = 4M

xcache.var_count = 1

xcache.var_slots = 8K

; default ttl

xcache.var_ttl = 0

xcache.var_maxttl = 0

xcache.var_gc_interval = 300

; N/A for /dev/zero

xcache.readonly_protection = Off

; for *nix, xcache.mmap_path is a file path, not directory.

; Use something like "/tmp/xcache" if you want to turn on Rea donlyProtection

; 2 group of php won't share the same /tmp/xcache

; for win32, xcache.mmap_path=anonymous map name, not file pa th

xcache.mmap_path = "/dev/zero"

; leave it blank(disabled) or "/tmp/phpcore/"

; make sure it's writable by php (open_basedir is not checked )

xcache.coredump_directory = ""

; per request settings

xcache.cacher = On

xcache.stat = On

xcache.optimizer = Off

xcache.test = Off

xcache.experimental = Off

[xcache.coverager]

; per request settings

; enable coverage data collecting for xcache.coveragedump_dir ectory and xcache_coverager_start/stop/get/clean() functions (will hurt executing performance)

xcache.coverager = Off

; ini only settings

; make sure it's readable (open_basedir is checked) by covera ge viewer script

; requires xcache.coverager=On

xcache.coveragedump_directory = ""

[root@localhost xcache-2.0.0]#

[root@localhost xcache-2.0.0]# pwd

/root/xcache-2.0.0

[root@localhost xcache-2.0.0]# ls #可以看到 xcache.ini 的样例性的配置文件

# 要想让php支持xcache的功能,那么xcache.ini 的配置信息必须要提供到php里面去,所以 cat xcache.ini 追加到 php.ini 里面去

#或者复制 xcache.ini到 php.d 目录下面去

acinclude.m4 const_string.lo install-sh NEWS stack.h

aclocal.m4 const_string_opcodes_php4.x.h libtool opcode_spec.c stack.lo

admin const_string_opcodes_php5.0.h lock.c opcode_spec_def.h structinfo.m4

align.h const_string_opcodes_php5.1.h lock.h opcode_spec.h test.mak

assembler.c const_string_opcodes_php5.4.h lock.lo opcode_spec.lo tests

AUTHORS const_string_opcodes_php6.x.h ltmain.sh optimizer.c THANKS

autom4te.cache COPYING Makefile optimizer.h utils.c

build coverager Makefile.frag phpdc.phpr utils.h

ChangeLog coverager.c Makefile.fragments phpdop.phpr utils.lo

config.guess coverager.h Makefile.global prepare.devel xcache.c

config.h decoder.c Makefile.objects prepare.devel.inc xcache_globals.h

config.h.in Decompiler.class.php mem.c prepare.devel.inc.example xcache.h

config.log decompilesample.php mem.h processor xcache.ini

config.m4 disassembler.c mem.lo processor.c xcache.la

config.nice disassembler.h missing processor.h xcache.lo

config.status encoder.c mkinstalldirs processor.lo xcache-test.ini

config.sub foreachcoresig.h mkopcode.awk processor.out xcache-zh-gb2312.ini

configure graph mkopcode_spec.awk processor_real.c xc_malloc.c

configure.in include mkstructinfo.awk README xc_shm.c

config.w32 includes.c mmap.c run-tests.php xc_shm.h

const_string.c includes.i mmap.lo run-xcachetest xc_shm.lo

const_string.h INSTALL modules stack.c

[root@localhost xcache-2.0.0]#

[root@localhost xcache-2.0.0]# ls -ls /etc/php.d/

总计 32

4 -rw-r--r-- 1 root root 49 2013-08-19 curl.ini

4 -rw-r--r-- 1 root root 57 2013-08-19 fileinfo.ini

4 -rw-r--r-- 1 root root 49 2013-08-19 json.ini

4 -rw-r--r-- 1 root root 57 2013-08-19 mbstring.ini

4 -rw-r--r-- 1 root root 47 2013-08-19 pdo.ini

4 -rw-r--r-- 1 root root 61 2013-08-19 pdo_sqlite.ini

4 -rw-r--r-- 1 root root 49 2013-08-19 phar.ini

4 -rw-r--r-- 1 root root 47 2013-08-19 zip.ini

[root@localhost xcache-2.0.0]# cp xcache.ini /etc/php.d/

[root@localhost xcache-2.0.0]#

[root@localhost xcache-2.0.0]# vim /etc/php.d/xcache.ini

[xcache-common] ;普通功能

;; install as zend extension (recommended), normally "$extension_dir/xcache.so"

;zend_extension = /usr/local/lib/php/extensions/non-debug-non-zts-xxx/xcache.so

zend_extension =/usr/local/php/lib/php/extensions/no-debug-zts-20100525/ ;改成真实的路径

; zend_extension_ts = /usr/local/lib/php/extensions/non-debug-zts-xxx/xcache.so

;; For windows users, replace xcache.so with php_xcache.dll

;zend_extension_ts = c:/php/extensions/php_xcache.dll ;给windows使用的,注释掉就可以了

;; or install as extension, make sure your extension_dir setting is correct

; extension = xcache.so

;; or win32:

; extension = php_xcache.dll

[xcache.admin] ;管理功能

xcache.admin.enable_auth = On ;启用认证当然可以关掉

xcache.admin.user = "mOo" ;管理用户

; xcache.admin.pass = md5($your_password)

xcache.admin.pass = "" ;管理密码,是md5加密的

[xcache]

; ini only settings, all the values here is default unless explained

; select low level shm/allocator scheme implemenation

xcache.shm_scheme = "mmap" ;shm就是 shared memory 共享内存 ;使用哪种方式来使用共享内存,使用哪种方式在各个php进程之间共享内存 mmap (memory map)叫内存映射,意味着把一段内存可以让多个进程同时访问的,它是其中的一种机制

; to disable: xcache.size=0

; to enable : xcache.size=64M etc (any size > 0) and your system mmap allows

xcache.size = 60M ;缓存opcode代码的空间有多大

; set to cpu count (cat /proc/cpuinfo |grep -c processor)

xcache.count = 1 ;设置cpu个数

; just a hash hints, you can always store count(items) > slots (hash算法,数据库索引的时候再解释吧)

xcache.slots = 8K ;缓存当中有几个槽位来缓存多少个opcode的每一个槽位有多大

; ttl of the cache item, 0=forever

xcache.ttl = 0 ;过期时间, 0 表示永远不过期,由xcache自我进行管理

; interval of gc scanning expired items, 0=no scan, other values is in seconds

xcache.gc_interval = 0 ;万一过期了,我们回收过来内存,过期的内容要清除出去, gc( Garbage Collection 回收站,垃圾回收器,垃圾收集器) 这表示我们的垃圾回收器多长时间工作一次 0 表示不做任何扫描的 ;;;xcache.ttl 有过期时间,那么才要扫描的当然这些额外的机制都会给我们的系统带来额外的资源开销的,用不着,可以不用启用

; same as aboves but for variable cache ;变量缓存

xcache.var_size = 4M ;变量缓存有多大

xcache.var_count = 1 ;缓存多少个

xcache.var_slots = 8K

; default ttl

xcache.var_ttl = 0

xcache.var_maxttl = 0

xcache.var_gc_interval = 300

; N/A for /dev/zero

xcache.readonly_protection = Off

; for *nix, xcache.mmap_path is a file path, not directory.

; Use something like "/tmp/xcache" if you want to turn on ReadonlyProtection

; 2 group of php won't share the same /tmp/xcache

; for win32, xcache.mmap_path=anonymous map name, not file path

xcache.mmap_path = "/dev/zero"

; leave it blank(disabled) or "/tmp/phpcore/"

; make sure it's writable by php (open_basedir is not checked)

xcache.coredump_directory = ""

; per request settings

xcache.cacher = On ;xcache缓存功能启用起来

xcache.stat = On

xcache.optimizer = Off ;xcache自己的优化器没有启用起来这个不用启用

xcache.test = Off ;xcache测试功能也不用启用

xcache.experimental = Off

[xcache.coverager]

; per request settings

; enable coverage data collecting for xcache.coveragedump_directory and xcache_coverager_start/stop/get/clean() functions (will hurt executing performance)

xcache.coverager = Off

; ini only settings

; make sure it's readable (open_basedir is checked) by coverage viewer script

; requires xcache.coverager=On

xcache.coveragedump_directory = ""

要想让它重新生效,必须重启web服务器,xcache模块是被web加载的

[root@localhost xcache-2.0.0]# service httpd restart

停止 httpd： [确定]

启动 httpd： [确定]

[root@localhost xcache-2.0.0]#

[root@localhost xcache-2.0.0]# vim /usr/local/apache/htdocs/index.php

<html><body><h1>It works! my apache</h1></body></html>

<?php

//echo phpinfo();

$conn = mysql_connect('localhost','root','');

if($conn)

echo "Success...";

else

echo "Failure...";

phpinfo();

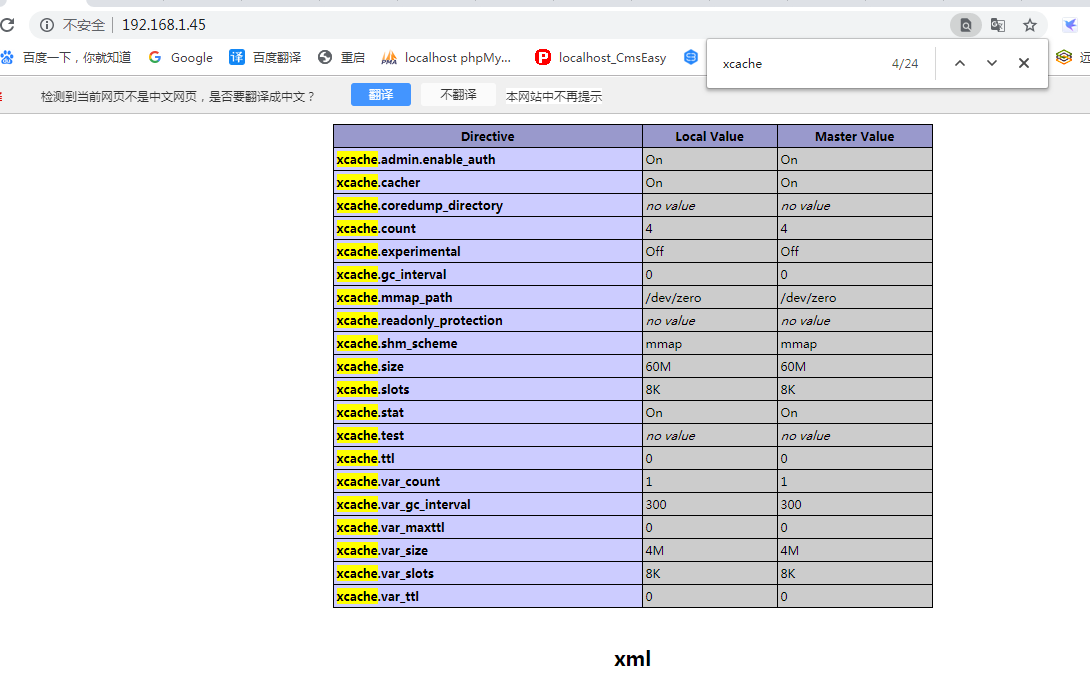

http://192.168.1.45/

readonly 只读的,当然不能让它 readonly

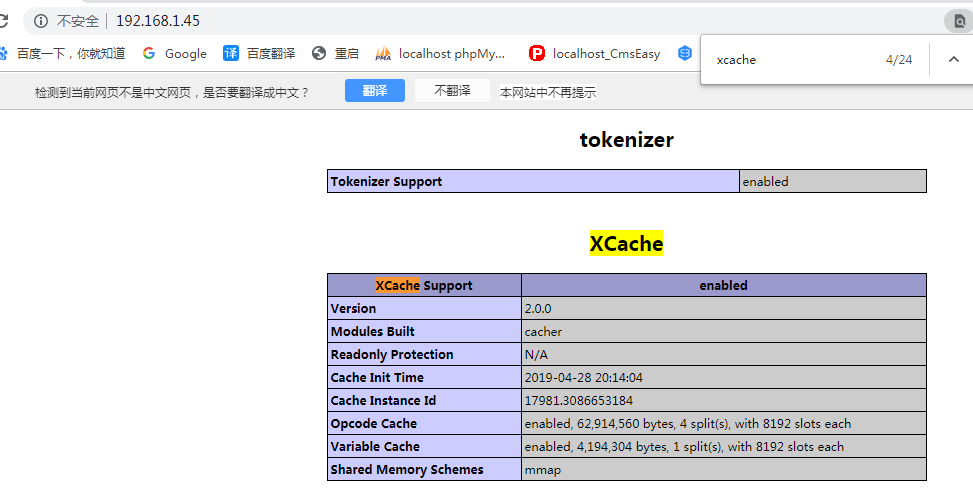

Opcode Cache 启用的一共62,914,560 bytes ,分出来 4 split(s), 每个槽位 with 8192 slots each

如果把缓存空间大小60M设置为0,意味着禁用

; to disable: xcache.size=0

; to enable : xcache.size=64M etc (any size > 0) and your system mmap allows

源码编译的方式使用虚拟主机

oot@localhost httpd]# cd /etc/httpd/

[root@localhost httpd]# pwd

/etc/httpd

[root@localhost httpd]#

root@localhost httpd]# vim httpd.conf

.................................

# DocumentRoot "/usr/local/apache/htdocs" #注释中心主机

.................................

Include /etc/httpd/extra/httpd-vhosts.conf #注释去掉,启用这一项

.................................

[root@localhost httpd]# ls

conf httpd.conf magic original

conf.d httpd.conf.bak mime.types run

extra logs modules ssl

[root@localhost httpd]#

[root@localhost httpd]# vim extra/httpd-vhosts.conf

# Virtual Hosts

# Required modules: mod_log_config # 要使用虚拟机 ,得启用这个模块

# If you want to maintain multiple domains/hostnames on your

# machine you can setup VirtualHost containers for them. Most configurations

# use only name-based virtual hosts so the server doesn't need to worry about

# IP addresses. This is indicated by the asterisks in the directives below.

# Please see the documentation at

# <URL:http://httpd.apache.org/docs/2.4/vhosts/>

# for further details before you try to setup virtual hosts.

# You may use the command line option '-S' to verify your virtual host

# configuration.

# VirtualHost example:

# Almost any Apache directive may go into a VirtualHost container.

# The first VirtualHost section is used for all requests that do not

# match a ServerName or ServerAlias in any <VirtualHost> block.

ServerAdmin webmaster@dummy-host.example.com

DocumentRoot "/usr/local/apache/docs/dummy-host.example.com"

ServerName dummy-host.example.com

ServerAlias www.dummy-host.example.com

ErrorLog "logs/dummy-host.example.com-error_log" #这是相对路径,相对于 /usr/local/apache/logs

CustomLog "logs/dummy-host.example.com-access_log" common

</VirtualHost>

ServerAdmin webmaster@dummy-host2.example.com

DocumentRoot "/usr/local/apache/docs/dummy-host2.example.com"

ServerName dummy-host2.example.com

ErrorLog "logs/dummy-host2.example.com-error_log"

CustomLog "logs/dummy-host2.example.com-access_log" common

</VirtualHost>

[root@localhost httpd]# vim httpd.conf

.................................

LoadModule log_config_module modules/mod_log_config.so #己经启用它

.................................

[root@localhost httpd]# mkdir -pv /www/{a.org,b.net}

[root@localhost httpd]#

[root@localhost httpd]# vim extra/httpd-vhosts.conf

# configuration.

# VirtualHost example:

# Almost any Apache directive may go into a VirtualHost container.

# The first VirtualHost section is used for all requests that do not

# match a ServerName or ServerAlias in any <VirtualHost> block.

# 就算是基于主机名的虚拟主机,它也不需要 NameVirtualHost 了

ServerName www.a.org

# ServerAdmin webmaster@dummy-host.example.com

DocumentRoot "/www/a.org"

# ServerAlias www.dummy-host.example.com

ErrorLog "/var/log/httpd/a.org-error_log"

CustomLog "/var/log/httpd/a.org-access_log" combined

</VirtualHost>

ServerName www.b.net

DocumentRoot "/www/b.net"

ErrorLog "/var/log/httpd/b.net-error_log"

CustomLog "/var/log/httpd/b.net-access_log" common

</VirtualHost>

[root@localhost httpd]# httpd -t #检查语法

Syntax OK

[root@localhost httpd]#

[root@localhost httpd]# service httpd restart

停止 httpd： [确定]

启动 httpd： [确定]

[root@localhost httpd]#

[root@localhost httpd]# tail /var/log/httpd/a.org-error_log #没有任何错误信息

[root@localhost httpd]#

[root@localhost httpd]# echo "<h1>www.a.org</h1>" > /www/a.org/index.html

[root@localhost httpd]#

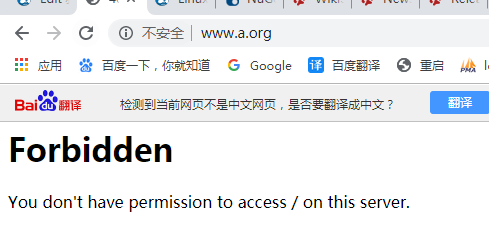

http://www.a.org/

[root@localhost httpd]# tail -n 3 /var/log/httpd/a.org-error_log

[Mon Apr 29 05:00:52.404222 2019] [authz_core:error] [pid 18281:tid 2913680272] [client 192.168.1.251:3376] AH01630: client denied by server configuration: /www/a.org/

[Mon Apr 29 05:00:52.479808 2019] [authz_core:error] [pid 18281:tid 2903190416] [client 192.168.1.251:3376] AH01630: client denied by server configuration: /www/a.org/favicon.ico

[Mon Apr 29 05:00:54.591840 2019] [authz_core:error] [pid 18281:tid 2892700560] [client 192.168.1.251:3376] AH01630: client denied by server configuration: /www/a.org/

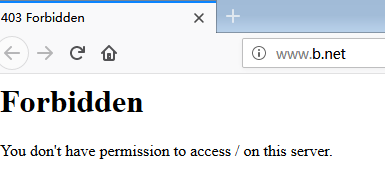

用户请求被拒绝默认情况下,简单的加一个目录来开放用户访问就可以了

[root@localhost httpd]#

[root@localhost httpd]# echo "<h1>www.b.net</h1>" > /www/b.net/index.html

[root@localhost httpd]#

windows 上 dos命令下 ipconfig/flushdns #清空dns缓存 (马哥上面需要,我的正常情况下不需要吧)

http://www.b.net/

[root@localhost httpd]# vim httpd.conf #下面这个用户名和组啥意思 apache以daemon用户daemon组的身份运行?

..............................

# If you wish httpd to run as a different user or group, you must run

# httpd as root initially and it will switch.

# User/Group: The name (or #number) of the user/group to run httpd as.

# It is usually good practice to create a dedicated user and group for

# running httpd, as with most system services.

User daemon

Group daemon

</IfModule>

...........................

[root@localhost httpd]# vim httpd.conf

...........................

# DocumentRoot "/usr/local/apache/htdocs"

# Possible values for the Options directive are "None", "All",

# or any combination of:

# Indexes Includes FollowSymLinks SymLinksifOwnerMatch ExecCGI MultiViews

# Note that "MultiViews" must be named *explicitly* --- "Options All"

# doesn't give it to you.

# The Options directive is both complicated and important. Please see

# http://httpd.apache.org/docs/2.4/mod/core.html#options

# for more information.

Options Indexes FollowSymLinks

# AllowOverride controls what directives may be placed in .htaccess files.

# It can be "All", "None", or any combination of the keywords:

# AllowOverride FileInfo AuthConfig Limit

AllowOverride None

# Controls who can get stuff from this server.

Require all granted #这是啥意思中心主机是允许的?

</Directory>

...........................

在 2.4当中配置任何虚拟主机的时候,如果没有明确定义某个目录能够被访问,那这个目录就不能被访问

[root@localhost httpd]# vim extra/httpd-vhosts.conf

# configuration.

# VirtualHost example:

# Almost any Apache directive may go into a VirtualHost container.

# The first VirtualHost section is used for all requests that do not

# match a ServerName or ServerAlias in any <VirtualHost> block.

ServerName www.a.org

# ServerAdmin webmaster@dummy-host.example.com

DocumentRoot "/www/a.org"

Options none

AllowOverride none

Require all granted

</Directory>

# ServerAlias www.dummy-host.example.com

ErrorLog "/var/log/httpd/a.org-error_log"

CustomLog "/var/log/httpd/a.org-access_log" combined

</VirtualHost>

ServerName www.b.net

DocumentRoot "/www/b.net"

Options none

AllowOverride none

Require all granted

</Directory>

ErrorLog "/var/log/httpd/b.net-error_log"

CustomLog "/var/log/httpd/b.net-access_log" common

</VirtualHost>

[root@localhost httpd]# service httpd restart

停止 httpd： [确定]

启动 httpd： [确定]

[root@localhost httpd]#

http://www.a.org/

http://www.b.net/index.html

测试性能压力测试

[root@localhost httpd]# cd /usr/local/apache/

[root@localhost apache]# ls

bin build cgi-bin error htdocs icons include logs man manual modules

[root@localhost apache]# ls bin/

ab checkgid envvars-std htdbm httpd rotatelogs

apachectl dbmmanage fcgistarter htdigest httxt2dbm

apxs envvars htcacheclean htpasswd logresolve

[root@localhost apache]#

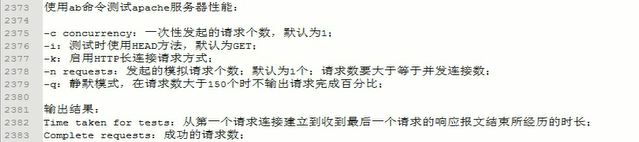

ab: apache benchmark (apache 性能压力测试工具, apache 性能评估工具)

[root@localhost apache]# man ab

Cannot open the message catalog "man" for locale "zh_CN.UTF-8"

(NLSPATH="<none>")

Formatting page, please wait...

AB(8) ab AB(8)

NAME

ab - Apache HTTP server benchmarking tool

SYNOPSIS

ab [ -A auth-username:password ] [ -c concurrency ] [ -C cookie-

name=value ] [ -d ] [ -e csv-file ] [ -g gnuplot-file ] [ -h ] [ -H

custom-header ] [ -i ] [ -k ] [ -n requests ] [ -p POST-file ] [ -P

proxy-auth-username:password ] [ -q ] [ -s ] [ -S ] [ -t timelimit ] [

-T content-type ] [ -v verbosity] [ -V ] [ -w ] [ -x <table>-attributes

] [ -X proxy[:port] ] [ -y <tr>-attributes ] [ -z <td>-attributes ]

[http://]hostname[:port]/path

SUMMARY

ab is a tool for benchmarking your Apache Hypertext Transfer Protocol

(HTTP) server. It is designed to give you an impression of how your

current Apache installation performs. This especially shows you how

many requests per second your Apache installation is capable of serv-

ing.

OPTIONS

-A auth-username:password

-c concurrency (并发量)

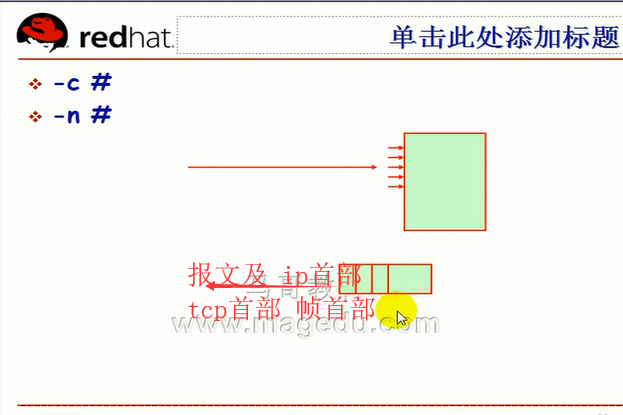

下图是并发量一次可以同时处理多少个请求

-n requests 一共请求多少个

-n 要大于 -c 的 ,

[root@localhost apache]# vim /etc/hosts

# Do not remove the following line, or various programs

# that require network functionality will fail.

127.0.0.1 localhost.localdomain localhost

::1 localhost6.localdomain6 localhost6

192.168.1.45 www.a.org

192.168.1.45 www.b.net

ab 测试的时候,必须要带上页面不能仅仅是域名

[root@localhost apache]# ab -c 10 -n 1000 http://www.a.org/index.html

This is ApacheBench, Version 2.0.40-dev <$Revision: 1.146 $> apache-2.0

Benchmarking www.a.org (be patient)

Completed 100 requests

Completed 200 requests

Completed 300 requests

Completed 400 requests

Completed 500 requests

Completed 600 requests

Completed 700 requests

Completed 800 requests

Completed 900 requests

Finished 1000 requests

Server Software: Apache/2.4.4 测试的服务器软件及版本号

Server Hostname: www.a.org 主机名称

Server Port: 80 端口

Document Path: /index.html 请求的文件

Document Length: 19 bytes 这个文件有多大

Concurrency Level: 10 并发级别10个

Time taken for tests: 0.825678 seconds 第一个请求开始(tcp连接开始)到最后一个请求的?响应报文,响应回来结束直接所经过的时长

Complete requests: 1000 成功请求得到多少个

Failed requests: 0 失败的请求有几个

Write errors: 0 失败的写入次数

Total transferred: 273000 bytes 服务器响应给我们的整体的数据量的大小 (总的既包括每个报文,又包括每个报文的首部加起来)

HTML transferred: 19000 bytes 仅指每个报文的大小, 首部就不所含了

Requests per second: 1211.13 [#/sec] (mean) 每秒钟完成的请求数,数字不大,是因为请求太少了

Time per request: 8.257 [ms] (mean) (它是一批请求(10个请求)同时完成的时间,可不是一个请求完成的时间)

Time per request: 0.826 [ms] (mean, across all concurrent requests) 每个请求平均花费的时间是0.8毫秒 (1000个请求都完成)

Transfer rate: 322.16 [Kbytes/sec] received 传输速率,大约每秒钟传输了多少个字节

Connection Times (ms) (ms 是毫秒吧)(下面的0,不是真正的0,可能精确度不够)

min mean[+/-sd] median max ( [+/-sd] 表示误差吧)

Connect: 0 0 0.5 0 12 建立连接所花费的时间 mean就是平均的意思? 0.5 是误差

Processing: 0 7 31.2 0 356 处理过程的时间

Waiting: 0 7 31.1 0 355 等待时间,请求过去了,等待响应的时间?请求传输(不是响应传输)的时间?

Total: 0 7 31.2 0 356

Percentage of the requests served within a certain time (ms)

50% 0

66% 0

75% 1

80% 1

90% 7

95% 54

98% 106

99% 186

100% 356 (longest request)

[root@localhost apache]#

[root@localhost apache]# ab -c 2 -n 1000 http://www.a.org/index.html

This is ApacheBench, Version 2.0.40-dev <$Revision: 1.146 $> apache-2.0

Benchmarking www.a.org (be patient)

Completed 100 requests

Completed 200 requests

Completed 300 requests

Completed 400 requests

Completed 500 requests

Completed 600 requests

Completed 700 requests

Completed 800 requests

Completed 900 requests

Finished 1000 requests

Server Software: Apache/2.4.4

Server Hostname: www.a.org

Server Port: 80

Document Path: /index.html

Document Length: 19 bytes

Concurrency Level: 2

Time taken for tests: 0.140876 seconds

Complete requests: 1000

Failed requests: 0

Write errors: 0

Total transferred: 273000 bytes

HTML transferred: 19000 bytes

Requests per second: 7098.44 [#/sec] (mean)

Time per request: 0.282 [ms] (mean)

Time per request: 0.141 [ms] (mean, across all concurrent requests)

Transfer rate: 1888.19 [Kbytes/sec] received

Connection Times (ms)

min mean[+/-sd] median max

Connect: 0 0 0.5 0 16

Processing: 0 0 0.5 0 16

Waiting: 0 0 0.0 0 1

Total: 0 0 0.7 0 16

Percentage of the requests served within a certain time (ms)

50% 0

66% 0

75% 0

80% 0

90% 0

95% 0

98% 0

99% 0

100% 16 (longest request)

[root@localhost apache]#

[root@localhost apache]# ab -c 1000 -n 1000 http://www.a.org/index.html

This is ApacheBench, Version 2.0.40-dev <$Revision: 1.146 $> apache-2.0

Benchmarking www.a.org (be patient)

Completed 100 requests

Completed 200 requests

Completed 300 requests

Completed 400 requests

Completed 500 requests

Completed 600 requests

Completed 700 requests

Completed 800 requests

Completed 900 requests

Finished 1000 requests

Server Software: Apache/2.4.4

Server Hostname: www.a.org

Server Port: 80

Document Path: /index.html

Document Length: 19 bytes

Concurrency Level: 1000

Time taken for tests: 6.386959 seconds

Complete requests: 1000

Failed requests: 0

Write errors: 0

Total transferred: 273000 bytes

HTML transferred: 19000 bytes

Requests per second: 156.57 [#/sec] (mean)

Time per request: 6386.959 [ms] (mean)

Time per request: 6.387 [ms] (mean, across all concurrent requests)

Transfer rate: 41.65 [Kbytes/sec] received

Connection Times (ms)

min mean[+/-sd] median max

Connect: 0 12 7.0 13 23

Processing: 11 1093 1878.6 210 6365

Waiting: 10 1091 1878.8 208 6364

Total: 12 1105 1880.8 225 6386

Percentage of the requests served within a certain time (ms)

50% 225

66% 638

75% 1444

80% 1473

90% 3103

95% 6383

98% 6384

99% 6385

100% 6386 (longest request)

[root@localhost apache]#

[root@localhost apache]# ab -c 100 -n 5000 http://www.a.org/index.html

This is ApacheBench, Version 2.0.40-dev <$Revision: 1.146 $> apache-2.0

Benchmarking www.a.org (be patient)

Completed 500 requests

Completed 1000 requests

Completed 1500 requests

Completed 2000 requests

Completed 2500 requests

Completed 3000 requests

Completed 3500 requests

Completed 4000 requests

Completed 4500 requests

Finished 5000 requests

Server Software: Apache/2.4.4

Server Hostname: www.a.org

Server Port: 80

Document Path: /index.html

Document Length: 19 bytes

Concurrency Level: 100

Time taken for tests: 0.574735 seconds

Complete requests: 5000

Failed requests: 0

Write errors: 0

Total transferred: 1369641 bytes

HTML transferred: 95323 bytes

Requests per second: 8699.66 [#/sec] (mean)

Time per request: 11.495 [ms] (mean)

Time per request: 0.115 [ms] (mean, across all concurrent requests)

Transfer rate: 2326.29 [Kbytes/sec] received

Connection Times (ms)

min mean[+/-sd] median max

Connect: 0 1 2.1 1 18

Processing: 0 9 23.3 6 341

Waiting: 0 5 22.9 2 336

Total: 0 10 23.5 7 341

Percentage of the requests served within a certain time (ms)

50% 7

66% 8

75% 9

80% 11

90% 18

95% 24

98% 30

99% 96

100% 341 (longest request)

[root@localhost apache]#

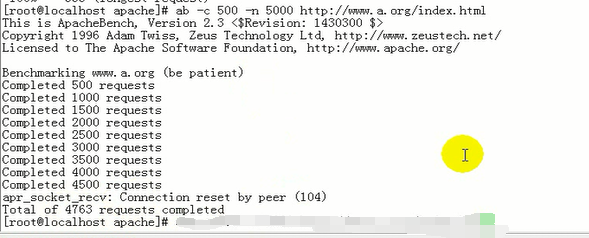

同时请求太多会报错了

[root@localhost apache]# ab -c 5000 -n 50000 http://www.a.org/index.html

This is ApacheBench, Version 2.0.40-dev <$Revision: 1.146 $> apache-2.0

Benchmarking www.a.org (be patient)

socket: Too many open files (24)

[root@localhost apache]#

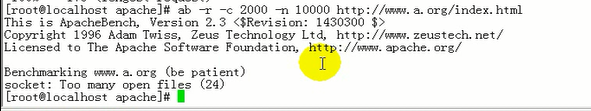

马哥的报错 ,可能是打开的请求太多了

马哥加上 -r 能忽略这个错误

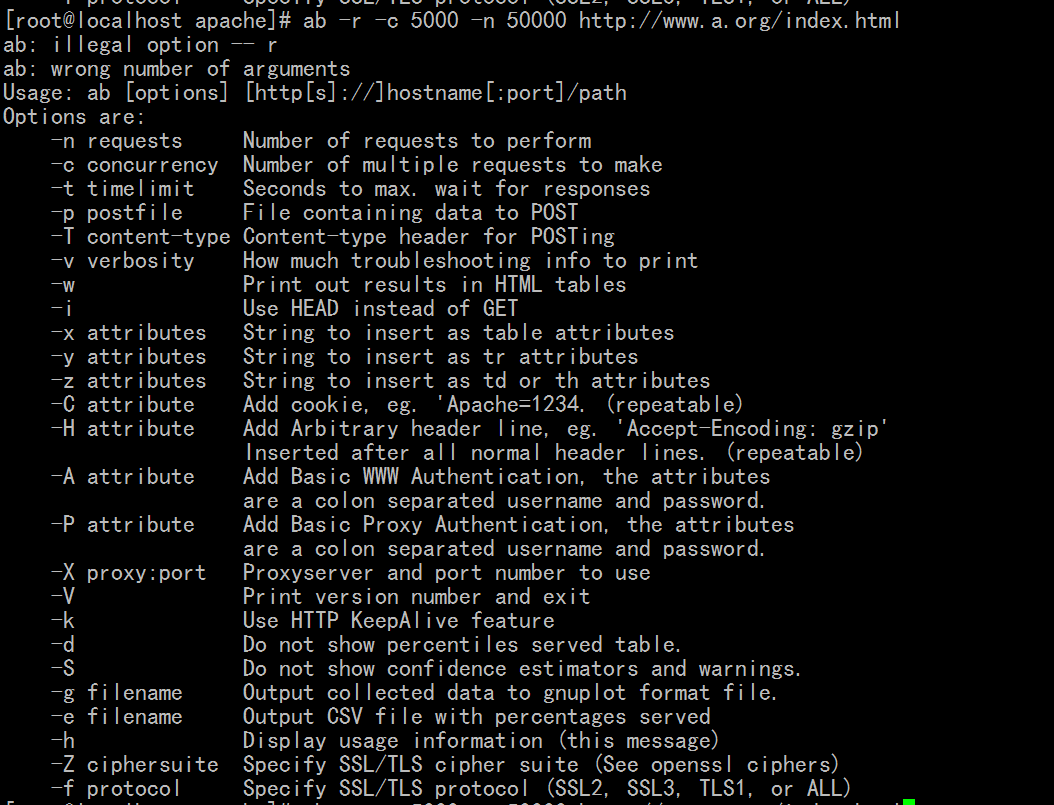

我加上 -r 就提示没有-r 这个选项

[root@localhost apache]# locate -r /ab$

/root/httpd-2.4.4/support/ab

/usr/bin/ab

/usr/local/apache/bin/ab

/usr/share/locale/ab

[root@localhost apache]#

像下面这个使用 -r 才可以 ,可以 ab版本不一样

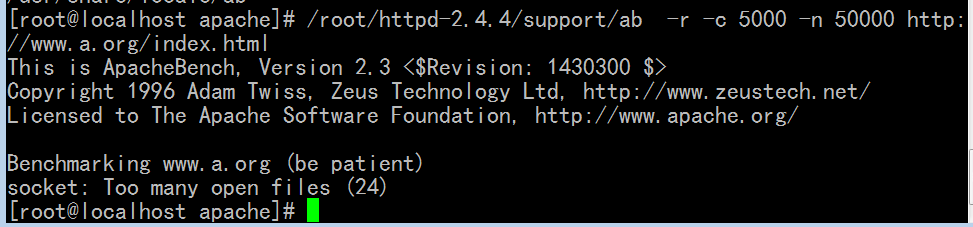

[root@localhost apache]# /root/httpd-2.4.4/support/ab -r -c 5000 -n 50000 http://www.a.org/index.html

This is ApacheBench, Version 2.3 <$Revision: 1430300 $>

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking www.a.org (be patient)

socket: Too many open files (24)

[root@localhost apache]#

并发量不一样, 请求个数是一样的 ,但是下面这些值会不一样

Requests per second: 8699.66 [#/sec] (mean)

Time per request: 11.495 [ms] (mean)

Time per request: 0.115 [ms] (mean, across all concurrent requests)

[root@localhost apache]# /root/httpd-2.4.4/support/ab -r -c 5000 -n 50000 http://www.a.org/index.html

This is ApacheBench, Version 2.3 <$Revision: 1430300 $>

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking www.a.org (be patient)

socket: Too many open files (24)

[root@localhost apache]#

上面报错是因为: linux命令有个限定,每一个进程不能打开超过 1024 (1000?)个文件

并发2000个,每一个都是一个套接字文件,打开2000个文件了

[root@localhost apache]# ulimit -n 10000 改变限定,让每个进程可以打开10000个文件.

[root@localhost apache]#

下面的代码可能两次执行结果不一样

[root@localhost apache]# /root/httpd-2.4.4/support/ab -r -c 5000 -n 50000 http://www.a.org/index.html

This is ApacheBench, Version 2.3 <$Revision: 1430300 $>

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking www.a.org (be patient)

socket: Too many open files (24)

[root@localhost apache]# ulimit -n 10000

[root@localhost apache]# /root/httpd-2.4.4/support/ab -r -c 5000 -n 50000 http://www.a.org/index.html

This is ApacheBench, Version 2.3 <$Revision: 1430300 $>

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking www.a.org (be patient)

Completed 5000 requests

Completed 10000 requests

Completed 15000 requests

Completed 20000 requests

Completed 25000 requests

Completed 30000 requests

Completed 35000 requests

Completed 40000 requests

Completed 45000 requests

Completed 50000 requests

Finished 50000 requests

Server Software: Apache/2.4.4

Server Hostname: www.a.org

Server Port: 80

Document Path: /index.html

Document Length: 19 bytes

Concurrency Level: 5000

Time taken for tests: 26.419 seconds

Complete requests: 50000

Failed requests: 136

(Connect: 0, Receive: 0, Length: 136, Exceptions: 0)

Write errors: 0

Total transferred: 13612872 bytes

HTML transferred: 947416 bytes

Requests per second: 1892.59 [#/sec] (mean)

Time per request: 2641.879 [ms] (mean)

Time per request: 0.528 [ms] (mean, across all concurrent requests)

Transfer rate: 503.20 [Kbytes/sec] received

Connection Times (ms)

min mean[+/-sd] median max

Connect: 0 252 758.8 37 3343

Processing: 34 265 1473.8 142 23006

Waiting: 1 141 873.6 75 22880

Total: 39 517 1752.8 176 26191

Percentage of the requests served within a certain time (ms)

50% 176

66% 197

75% 217

80% 237

90% 477

95% 3430

98% 3592

99% 4342

100% 26191 (longest request)

[root@localhost apache]#

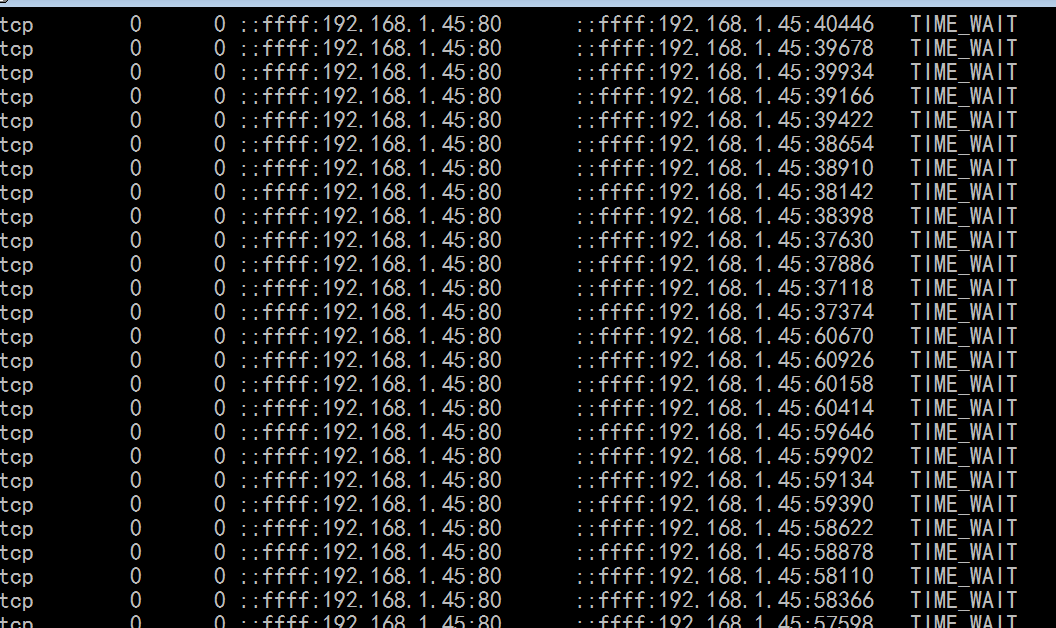

[root@localhost apache]# netstat -an

这些太多的套接字文件,此前发起的每一个请求,我们的服务器都是维持一个套接字(一个连接)

太多的连接还在等待未断开 ( 因为每个连接要经历三次握手,四次挥手(断开) ) ,所以两次执行大量的 ab 命令,会结果不一样

[root@localhost apache]# ls -lh /var/log

总计 5.9M

-rw-r----- 1 root root 4.5K 04-29 02:04 acpid

-rw------- 1 root root 558K 11-10 14:26 anaconda.log

-rw------- 1 root root 41K 11-10 14:26 anaconda.syslog

-rw------- 1 root root 47K 11-10 14:26 anaconda.xlog

drwxr-x--- 2 root root 4.0K 11-10 14:28 audit

-rw------- 1 root root 0 04-29 03:09 boot.log

-rw------- 1 root root 0 03-31 11:51 boot.log.1

-rw------- 1 root root 0 03-29 01:38 boot.log.2

-rw------- 1 root root 0 03-04 06:43 boot.log.3

-rw------- 1 root root 0 02-24 03:33 boot.log.4

-rw------- 1 root utmp 8.3K 04-29 05:22 btmp

drwxr-xr-x 2 root root 4.0K 2007-06-28 conman

drwxr-xr-x 2 root root 4.0K 2007-06-28 conman.old

-rw------- 1 root root 985 04-29 08:01 cron

-rw------- 1 root root 7.5K 04-29 03:09 cron.1

-rw------- 1 root root 4.8K 03-31 11:51 cron.2

-rw------- 1 root root 3.9K 03-29 01:37 cron.3

-rw------- 1 root root 4.6K 03-04 06:43 cron.4

drwxr-xr-x 2 lp sys 4.0K 04-29 03:09 cups

-rw-r--r-- 1 root root 37K 04-29 02:04 dmesg

-rw------- 1 root root 12K 04-03 22:04 faillog

drwxr-xr-x 2 root root 4.0K 11-10 14:40 gdm

drwx------ 2 root root 4.0K 04-29 03:09 httpd

-rw------- 1 root root 1.8M 04-29 08:20 kern.log

-rw-r--r-- 1 root root 144K 04-29 08:20 lastlog

drwxr-xr-x 2 root root 4.0K 11-10 14:13 mail

-rw------- 1 root root 887 04-29 04:02 maillog

-rw------- 1 root root 4.9K 04-29 03:09 maillog.1

-rw------- 1 root root 3.4K 03-31 11:51 maillog.2

-rw------- 1 root root 2.5K 03-29 01:38 maillog.3

-rw------- 1 root root 3.0K 03-04 06:43 maillog.4

-rw------- 1 root root 18K 04-29 08:25 messages

-rw------- 1 root root 1.9M 04-29 03:09 messages.1

-rw------- 1 root root 222K 03-31 11:51 messages.2

-rw------- 1 root root 99K 03-29 01:38 messages.3

-rw------- 1 root root 77K 03-04 05:38 messages.4

-rw-r----- 1 27 27 2.0K 04-03 21:08 mysqld.log.rpmsave

drwxrwx--- 2 named named 4.0K 02-17 20:08 named

drwxr-xr-x 2 root root 4.0K 11-10 14:19 pm

drwx------ 2 root root 4.0K 2008-08-12 ppp

drwxr-xr-x 2 root root 4.0K 12-10 14:39 prelink

drwxr-xr-x 2 root root 4.0K 03-31 11:51 rhsm

-rw-r--r-- 1 root root 34K 04-29 04:02 rpmpkgs

-rw-r--r-- 1 root root 34K 04-04 04:02 rpmpkgs.1

-rw-r--r-- 1 root root 34K 03-30 04:02 rpmpkgs.2

-rw-r--r-- 1 root root 34K 03-05 04:02 rpmpkgs.3

-rw-r--r-- 1 root root 34K 02-25 04:02 rpmpkgs.4

drwx------ 2 root root 4.0K 2012-03-21 samba

-rw-r--r-- 1 root root 72K 04-02 09:00 scrollkeeper.log

-rw------- 1 root root 748 04-29 08:20 secure

-rw------- 1 root root 8.3K 04-29 02:29 secure.1

-rw------- 1 root root 3.3K 03-31 10:46 secure.2

-rw------- 1 root root 2.0K 03-29 01:22 secure.3

-rw------- 1 root root 3.3K 03-04 05:38 secure.4

drwxr-xr-x 2 root root 4.0K 04-29 03:09 setroubleshoot

-rw------- 1 root root 0 04-29 03:09 spooler

-rw------- 1 root root 0 03-31 11:51 spooler.1

-rw------- 1 root root 0 03-29 01:38 spooler.2

-rw------- 1 root root 0 03-04 06:43 spooler.3

-rw------- 1 root root 0 02-24 03:33 spooler.4

drwxr-x--- 2 squid squid 4.0K 2010-02-16 squid

-rw------- 1 root root 0 11-10 14:12 tallylog

drwxr-xr-x 2 root root 4.0K 2009-06-09 vbox

-rw-rw-r-- 1 root utmp 419K 04-29 08:20 wtmp

-rw-r--r-- 1 root root 47K 11-10 14:40 Xorg.0.log

-rw-r--r-- 1 root root 47K 11-10 14:36 Xorg.0.log.old

-rw------- 1 root root 2.5K 04-03 21:08 yum.log

-rw-r--r-- 1 root root 132 12-20 13:21 yum.log.1

[root@localhost apache]#

[root@localhost apache]# ls -lh /var/log/lastlog

-rw-r--r-- 1 root root 144K 04-29 08:20 /var/log/lastlog

[root@localhost apache]#

[root@localhost apache]# cp /var/log/lastlog /www/a.org/test.html

[root@localhost apache]#

过几分钟,让所有的套接字等待全部结束,

[root@localhost apache]# netstat -an

Active Internet connections (servers and established)

Proto Recv-Q Send-Q Local Address Foreign Address Stat e

tcp 0 0 127.0.0.1:2208 0.0.0.0:* LIST EN

tcp 0 0 0.0.0.0:111 0.0.0.0:* LIST EN

tcp 0 0 0.0.0.0:688 0.0.0.0:* LIST EN

tcp 0 0 0.0.0.0:22 0.0.0.0:* LIST EN

tcp 0 0 127.0.0.1:631 0.0.0.0:* LIST EN

tcp 0 0 127.0.0.1:25 0.0.0.0:* LIST EN

tcp 0 0 127.0.0.1:2207 0.0.0.0:* LIST EN

tcp 0 500 192.168.1.45:22 192.168.1.251:2625 ESTA BLISHED

tcp 0 0 192.168.1.45:22 192.168.1.251:11034 ESTA BLISHED

tcp 0 0 :::80 :::* LIST EN

tcp 0 0 :::22 :::* LIST EN

udp 0 0 0.0.0.0:682 0.0.0.0:*

udp 0 0 0.0.0.0:685 0.0.0.0:*

udp 0 0 0.0.0.0:35932 0.0.0.0:*

udp 0 0 0.0.0.0:5353 0.0.0.0:*

udp 0 0 0.0.0.0:111 0.0.0.0:*

udp 0 0 0.0.0.0:631 0.0.0.0:*

udp 0 0 :::55005 :::*

udp 0 0 :::5353 :::*

Active UNIX domain sockets (servers and established)

Proto RefCnt Flags Type State I-Node Path

unix 2 [ ACC ] STREAM LISTENING 7269 @ISCSIADM_ABSTRACT_NAME SPACE

unix 2 [ ACC ] STREAM LISTENING 11765 @/tmp/fam-root-

unix 2 [ ACC ] STREAM LISTENING 11616 /var/run/avahi-daemon/s ocket

unix 2 [ ACC ] STREAM LISTENING 11477 /tmp/.font-unix/fs7100

unix 2 [ ACC ] STREAM LISTENING 8788 @/var/run/hald/dbus-s1V EVQlPzO

unix 2 [ ACC ] STREAM LISTENING 11310 /dev/gpmctl

unix 2 [ ACC ] STREAM LISTENING 7254 @ISCSID_UIP_ABSTRACT_NA MESPACE

unix 2 [ ACC ] STREAM LISTENING 8787 @/var/run/hald/dbus-DVt Sk64Jkq

unix 2 [ ] DGRAM 1775 @/org/kernel/udev/udevd

unix 2 [ ] DGRAM 8796 @/org/freedesktop/hal/u dev_event

unix 2 [ ACC ] STREAM LISTENING 7832 /var/run/audispd_events

unix 2 [ ACC ] STREAM LISTENING 8506 /var/run/dbus/system_bu s_socket

unix 2 [ ACC ] STREAM LISTENING 8602 /var/run/sdp

unix 18 [ ] DGRAM 7895 /dev/log

unix 2 [ ACC ] STREAM LISTENING 8721 /var/run/pcscd.comm

unix 2 [ ACC ] STREAM LISTENING 8743 /var/run/acpid.socket

unix 2 [ ACC ] STREAM LISTENING 10869 /var/run/cups/cups.sock

unix 2 [ ] DGRAM 360036

unix 2 [ ] DGRAM 54182

unix 3 [ ] STREAM CONNECTED 11768 @/tmp/fam-root-

unix 3 [ ] STREAM CONNECTED 11767

unix 3 [ ] STREAM CONNECTED 11758 /var/run/dbus/system_bu s_socket

unix 3 [ ] STREAM CONNECTED 11757

unix 3 [ ] STREAM CONNECTED 11619 /var/run/dbus/system_bu s_socket

unix 3 [ ] STREAM CONNECTED 11618

unix 3 [ ] STREAM CONNECTED 11613

unix 3 [ ] STREAM CONNECTED 11612

unix 2 [ ] DGRAM 11610

unix 2 [ ] DGRAM 11404

unix 2 [ ] DGRAM 11282

unix 2 [ ] DGRAM 11248

unix 2 [ ] DGRAM 11213

unix 2 [ ] DGRAM 10931

unix 2 [ ] DGRAM 10761

unix 2 [ ] DGRAM 10711

unix 2 [ ] DGRAM 10582

unix 3 [ ] STREAM CONNECTED 10544 /var/run/dbus/system_bu s_socket

unix 3 [ ] STREAM CONNECTED 10543

unix 3 [ ] STREAM CONNECTED 10481 @/var/run/hald/dbus-DVt Sk64Jkq

unix 3 [ ] STREAM CONNECTED 10480

unix 3 [ ] STREAM CONNECTED 10312 @/var/run/hald/dbus-DVt Sk64Jkq

unix 3 [ ] STREAM CONNECTED 10311

unix 3 [ ] STREAM CONNECTED 10252 /var/run/acpid.socket

unix 3 [ ] STREAM CONNECTED 10251

unix 3 [ ] STREAM CONNECTED 10232 @/var/run/hald/dbus-DVt Sk64Jkq

unix 3 [ ] STREAM CONNECTED 10231

unix 3 [ ] STREAM CONNECTED 8791 @/var/run/hald/dbus-s1V EVQlPzO

unix 3 [ ] STREAM CONNECTED 8790

unix 2 [ ] DGRAM 8707

unix 3 [ ] STREAM CONNECTED 8596 /var/run/dbus/system_bu s_socket

unix 3 [ ] STREAM CONNECTED 8595

unix 2 [ ] DGRAM 8575

unix 2 [ ] DGRAM 8565

unix 3 [ ] STREAM CONNECTED 8510

unix 3 [ ] STREAM CONNECTED 8509

unix 3 [ ] STREAM CONNECTED 8418

unix 3 [ ] STREAM CONNECTED 8417

unix 2 [ ] DGRAM 8275

unix 2 [ ] DGRAM 7903

unix 3 [ ] STREAM CONNECTED 7823

unix 3 [ ] STREAM CONNECTED 7822

[root@localhost apache]#

[root@localhost apache]# /usr/local/apache/bin/ab -r -c 2000 -n 10000 http://www.a.org/test.html

This is ApacheBench, Version 2.3 <$Revision: 1430300 $>

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking www.a.org (be patient)

Completed 1000 requests

Completed 2000 requests

Completed 3000 requests

Completed 4000 requests

Completed 5000 requests

Completed 6000 requests

Completed 7000 requests

Completed 8000 requests

Completed 9000 requests

Completed 10000 requests

Finished 10000 requests

Server Software: Apache/2.4.4

Server Hostname: www.a.org

Server Port: 80

Document Path: /test.html

Document Length: 147168 bytes

Concurrency Level: 2000

Time taken for tests: 6.322 seconds

Complete requests: 10000

Failed requests: 0

Write errors: 0

Total transferred: 1474290000 bytes

HTML transferred: 1471680000 bytes

Requests per second: 1581.84 [#/sec] (mean)

Time per request: 1264.349 [ms] (mean)

Time per request: 0.632 [ms] (mean, across all concurrent requests) #每个请求多久

Transfer rate: 227743.46 [Kbytes/sec] received #每秒传22万个字节 227743.46/1024=222.4

#再乘以8 * 222.4 = 1779 兆所以千兆网都不行

Connection Times (ms)

min mean[+/-sd] median max

Connect: 0 27 23.6 17 101

Processing: 69 296 777.2 137 6255

Waiting: 1 198 787.3 29 6251

Total: 91 324 784.5 164 6321

Percentage of the requests served within a certain time (ms)

50% 164

66% 177

75% 192

80% 207

90% 332

95% 776

98% 1730

99% 6305

100% 6321 (longest request)

[root@localhost apache]#

这是 event ,不是一个请求一个进程的,

反正进程也是很多的 (当然比 prefork 少许多)

[root@localhost ~]# ps aux | grep httpd

root 18506 0.0 1.0 100216 11304 ? Ss 05:45 0:00 /usr/local/apac he/bin/httpd

daemon 18539 0.0 2.7 400644 28896 ? Sl 05:45 0:01 /usr/local/apac he/bin/httpd

daemon 19036 0.0 2.5 397312 26720 ? Sl 08:17 0:00 /usr/local/apac he/bin/httpd

daemon 19038 0.0 2.5 399576 26892 ? Sl 08:17 0:00 /usr/local/apac he/bin/httpd

daemon 19092 0.0 2.7 401440 27988 ? Sl 08:17 0:00 /usr/local/apac he/bin/httpd

daemon 19094 0.0 2.5 398636 26636 ? Sl 08:17 0:00 /usr/local/apac he/bin/httpd

daemon 19116 0.1 2.9 401340 30408 ? Sl 08:17 0:01 /usr/local/apac he/bin/httpd

daemon 19124 0.1 2.9 402652 30672 ? Sl 08:17 0:01 /usr/local/apac he/bin/httpd

daemon 19265 0.0 2.9 402208 30364 ? Sl 08:18 0:00 /usr/local/apac he/bin/httpd

daemon 19293 0.1 3.1 402504 32568 ? Sl 08:18 0:01 /usr/local/apac he/bin/httpd

daemon 19295 0.1 3.4 409060 35184 ? Sl 08:18 0:01 /usr/local/apac he/bin/httpd

root 19422 0.0 0.0 4280 716 pts/0 S+ 08:35 0:00 grep httpd

[root@localhost ~]#

[root@localhost ~]# dd if=/dev/zero of=/www/a.org/test3.html bs=1M count=2

2+0 records in

2+0 records out

2097152 bytes (2.1 MB) copied, 0.00201316 seconds, 1.0 GB/s

[root@localhost ~]#

网页文件压缩下能够节约带宽的

每秒钟响应的带宽 * 86400(秒) 就是每天能够响应的流量

[root@localhost ~]# /usr/local/apache/bin/ab -r -c 2000 -n 10000 http://www.org.com/test3.html

This is ApacheBench, Version 2.3 <$Revision: 1430300 $>

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking www.org.com (be patient)

Completed 1000 requests

Completed 2000 requests

Completed 3000 requests

Completed 4000 requests

Completed 5000 requests

Completed 6000 requests

Completed 7000 requests

Completed 8000 requests

Completed 9000 requests

Completed 10000 requests

Finished 10000 requests

Server Software: nginx/1.10.1

Server Hostname: www.org.com

Server Port: 80

Document Path: /test3.html

Document Length: 9 bytes

Concurrency Level: 2000

Time taken for tests: 189.609 seconds

Complete requests: 10000

Failed requests: 12463

(Connect: 0, Receive: 1410, Length: 9643, Exceptions: 1410)

Write errors: 0

Non-2xx responses: 8590

Total transferred: 2734141 bytes

HTML transferred: 1394590 bytes

Requests per second: 52.74 [#/sec] (mean) #每秒钟响应 52 个请求要按峰值(最大量)作为响应请求的标准

Time per request: 37921.708 [ms] (mean)

Time per request: 18.961 [ms] (mean, across all concurrent requests)

Transfer rate: 14.08 [Kbytes/sec] received

Connection Times (ms)

min mean[+/-sd] median max

Connect: 0 4566 10669.4 343 93477

Processing: 265 27264 65556.1 333 189011

Waiting: 0 610 1761.9 320 10372

Total: 548 31830 64577.0 3638 189011

Percentage of the requests served within a certain time (ms)

50% 3638

66% 9615

75% 9671

80% 21603

90% 189005

95% 189008

98% 189009

99% 189010

100% 189011 (longest request)

[root@localhost ~]#

[root@localhost ~]# /usr/local/apache/bin/ab -r -c 200 -n 500 http://www.org.com/test3.html

This is ApacheBench, Version 2.3 <$Revision: 1430300 $>

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking www.org.com (be patient)

Completed 100 requests

Completed 200 requests

Completed 300 requests

Completed 400 requests

Completed 500 requests

Finished 500 requests

Server Software: nginx/1.10.1

Server Hostname: www.org.com

Server Port: 80

Document Path: /test3.html

Document Length: 9 bytes

Concurrency Level: 200

Time taken for tests: 50.707 seconds

Complete requests: 500

Failed requests: 398

(Connect: 0, Receive: 0, Length: 398, Exceptions: 0)

Write errors: 0

Non-2xx responses: 500

Total transferred: 157766 bytes

HTML transferred: 68180 bytes

Requests per second: 9.86 [#/sec] (mean)

Time per request: 20282.825 [ms] (mean)

Time per request: 101.414 [ms] (mean, across all concurrent requests)

Transfer rate: 3.04 [Kbytes/sec] received

Connection Times (ms)

min mean[+/-sd] median max

Connect: 261 2370 5023.6 361 21340

Processing: 273 1820 3179.6 339 11158

Waiting: 273 1818 3174.0 339 10349

Total: 565 4190 6135.5 759 30990

Percentage of the requests served within a certain time (ms)

50% 759

66% 1706

75% 6973

80% 9656

90% 11456

95% 21578

98% 21625

99% 21670

100% 30990 (longest request)

[root@localhost ~]#

[root@localhost ~]# wget https://files.phpmyadmin.net/phpMyAdmin/3.5.1/phpMyAdmin-3.5.1-all-languages.zip

--2019-04-29 09:49:42-- https://files.phpmyadmin.net/phpMyAdmin/3.5.1/phpMyAdmin-3.5.1-all-languages.zip

正在解析主机 files.phpmyadmin.net... 185.180.13.25

Connecting to files.phpmyadmin.net|185.180.13.25|:443... 已连接。

ERROR: cannot verify files.phpmyadmin.net's certificate, issued by `/C=US/O=DigiCert Inc/CN=DigiCert SHA2 Secure Server CA':

Issued certificate not yet valid.

ERROR: certificate common name `rsc.cdn77.org' doesn't match requested host name `files.phpmyadmin.net'.

To connect to files.phpmyadmin.net insecurely, use `--no-check-certificate'.

无法建立 SSL 连接。

[root@localhost ~]# wget https://files.phpmyadmin.net/phpMyAdmin/3.5.1/phpMyAdmin-3.5.1-all-languages.zip `--no-check-certificate

[root@localhost ~]# wget https://files.phpmyadmin.net/phpMyAdmin/3.5.1/phpMyAdmin-3.5.1-all-languages.zip --no-check-certificate

--2019-04-29 09:49:54-- https://files.phpmyadmin.net/phpMyAdmin/3.5.1/phpMyAdmin-3.5.1-all-languages.zip

正在解析主机 files.phpmyadmin.net... 185.180.13.212

Connecting to files.phpmyadmin.net|185.180.13.212|:443... 已连接。

WARNING: cannot verify files.phpmyadmin.net's certificate, issued by `/C=US/O=DigiCert Inc/CN=DigiCert SHA2 Secure Server CA':

Issued certificate not yet valid.

WARNING: certificate common name `rsc.cdn77.org' doesn't match requested host name `files.phpmyadmin.net'.

已发出 HTTP 请求，正在等待回应... 200 OK

长度：6145653 (5.9M) [application/zip]

Saving to: `phpMyAdmin-3.5.1-all-languages.zip'

100%[======================================>] 6,145,653 305K/s in 20s

2019-04-29 09:50:17 (297 KB/s) - `phpMyAdmin-3.5.1-all-languages.zip' saved [6145653/6145653]

[root@localhost ~]#

解压一下

[root@localhost ~]# unzip phpMyAdmin-3.5.1-all-languages.zip

.............................................................

[root@localhost ~]# mv phpMyAdmin-3.5.1-all-languages/ /www/b.net/

[root@localhost ~]#

[root@localhost ~]# cd /www/b.net/

[root@localhost b.net]# ls

admin.php data member.php stat

api favicon.ico misc.php temp

api.php forum.php phpMyAdmin-3.5.1-all-languages uc_c

archiver group.php plugin.php uc_s

config home.php portal.php user

connect.php index.html robots.txt

cp.php index.php search.php

crossdomain.xml install source

[root@localhost b.net]#

[root@localhost b.net]# mv phpMyAdmin-3.5.1-all-languages/ pma

[root@localhost b.net]# cd pma/

[root@localhost pma]#

[root@localhost pma]# ls

browse_foreigners.php favicon.ico RELEASE-DATE-3.5.1 tbl_gis_visualization.php

bs_disp_as_mime_type.php file_echo.php robots.txt tbl_import.php

bs_play_media.php gis_data_editor.php schema_edit.php tbl_indexes.php

ChangeLog import.php schema_export.php tbl_move_copy.php

changelog.php import_status.php server_binlog.php tbl_operations.php

chk_rel.php index.php server_collations.php tbl_printview.php

config.sample.inc.php js server_databases.php tbl_relation.php

db_create.php libraries server_engines.php tbl_replace.php

db_datadict.php LICENSE server_export.php tbl_row_action.php

db_events.php license.php server_import.php tbl_select.php

db_export.php locale server_plugins.php tbl_sql.php

db_import.php main.php server_privileges.php tbl_structure.php

db_operations.php navigation.php server_replication.php tbl_tracking.php

db_printview.php phpinfo.php server_sql.php tbl_triggers.php

db_qbe.php phpmyadmin.css.php server_status.php tbl_zoom_select.php

db_routines.php pmd_display_field.php server_synchronize.php themes

db_search.php pmd_general.php server_variables.php themes.php

db_sql.php pmd_pdf.php setup transformation_overview.php

db_structure.php pmd_relation_new.php show_config_errors.php transformation_wrapper.php

db_tracking.php pmd_relation_upd.php sql.php url.php

db_triggers.php pmd_save_pos.php tbl_addfield.php user_password.php

docs.css prefs_forms.php tbl_alter.php view_create.php

Documentation.html prefs_manage.php tbl_change.php view_operations.php

Documentation.txt print.css tbl_chart.php webapp.php

enum_editor.php querywindow.php tbl_create.php

examples README tbl_export.php

export.php README.VENDOR tbl_get_field.php

[root@localhost pma]#

[root@localhost pma]# cp config.sample.inc.php config.inc.php

[root@localhost pma]#

[root@localhost pma]# vim config.inc.php

<?php

/* vim: set expandtab sw=4 ts=4 sts=4: */

/**

* phpMyAdmin sample configuration, you can use it as base for

* manual configuration. For easier setup you can use setup/

* All directives are explained in Documentation.html and on phpMyAdmin

* wiki <http://wiki.phpmyadmin.net>.

* @package PhpMyAdmin

* This is needed for cookie based authentication to encrypt password in

* cookie

//$cfg['blowfish_secret'] = 'a8b7c6d'; /* YOU MUST FILL IN THIS FOR COOKIE AUTH! */

$cfg['blowfish_secret'] = 'VNlmq5O2X4rqEw'; //这个随机数的生成见下面

//blowfish 加密的密钥(随机码),可以自己生成随机数写在这里

* Servers configuration

$i = 0;

* First server

$i++;

/* Authentication type */

$cfg['Servers'][$i]['auth_type'] = 'cookie';

/* Server parameters */

$cfg['Servers'][$i]['host'] = 'localhost';

$cfg['Servers'][$i]['connect_type'] = 'tcp';

$cfg['Servers'][$i]['compress'] = false; //不要压缩

/* Select mysql if your server does not have mysqli */

$cfg['Servers'][$i]['extension'] = 'mysqli';

$cfg['Servers'][$i]['AllowNoPassword'] = false;//允许没有密码

............................

打开另一窗口,生成随机数 (16进制的10位数下面这个命令不行)

[root@localhost ~]# openssl rand -hex 10

Usage: rand [options] num

where options are

-out file - write to file

-engine e - use engine e, possibly a hardware device.

-rand file:file:... - seed PRNG from files

-base64 - encode output

[root@localhost ~]#

[root@localhost ~]# openssl rand

Usage: rand [options] num

where options are

-out file - write to file

-engine e - use engine e, possibly a hardware device.

-rand file:file:... - seed PRNG from files

-base64 - encode output

[root@localhost ~]#

[root@localhost ~]# whatis rand

rand (3) - pseudo-random number generator

rand (3p) - pseudo-random number generator

rand [sslrand] (1ssl) - generate pseudo-random bytes

rand [sslrand] (3ssl) - pseudo-random number generator

[root@localhost ~]#

[root@localhost ~]# man sslrand

RAND(1) OpenSSL RAND(1)

NAME

rand - generate pseudo-random bytes

SYNOPSIS

openssl rand [-out file] [-rand file(s)] [-base64] #不支持hex吗?

num

DESCRIPTION

The rand command outputs num pseudo-random bytes

after seeding the random number generator once. As

in other openssl command line tools, PRNG seeding

uses the file $HOME/.rnd or .rnd in addition to the

files given in the -rand option. A new $HOME/.rnd

or .rnd file will be written back if enough seeding

was obtained from these sources.

OPTIONS

-out file

Write to file instead of standard output.

[root@localhost ~]# openssl rand -base64 10 (这里生成的放在上面)

VNlmq5O2X4rqEw==

[root@localhost ~]#

http://www.b.net/pma/

[root@localhost pma]# mysqladmin -uroot password '123456'

mysqladmin: connect to server at 'localhost' failed

error: 'Can't connect to local MySQL server through socket '/tmp/mysql.sock' (2)'

Check that mysqld is running and that the socket: '/tmp/mysql.sock' exists!

[root@localhost pma]# service mysqld start

Starting MySQL.. [确定]

[root@localhost pma]# mysqladmin -uroot password '123456'

[root@localhost pma]#

[root@localhost pma]# mysqladmin -uroot -p flush-privileges (# 这个不执行其实也可以,因为 123456是有效的 )

Enter password:

[root@localhost pma]#

此时输用户名密码可以登录

[root@localhost pma]# /usr/local/apache/bin/ab -c 100 -n 1000 http ://www.b.net/pma/index.php # index.php未涉及到查询数据库,否则会更慢

This is ApacheBench, Version 2.3 <$Revision: 1430300 $>

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking www.b.net (be patient)

Completed 100 requests

Completed 200 requests

Completed 300 requests

Completed 400 requests

Completed 500 requests

Completed 600 requests

Completed 700 requests

Completed 800 requests

Completed 900 requests

Completed 1000 requests

Finished 1000 requests

Server Software: Apache/2.4.4

Server Hostname: www.b.net

Server Port: 80

Document Path: /pma/index.php

Document Length: 7038 bytes

Concurrency Level: 100

Time taken for tests: 5.334 seconds

Complete requests: 1000

Failed requests: 0

Write errors: 0

Total transferred: 7845606 bytes

HTML transferred: 7038000 bytes

Requests per second: 187.47 [#/sec] (mean) #看这个值

Time per request: 533.409 [ms] (mean) #看这个值

Time per request: 5.334 [ms] (mean, across all concurrent requests) #看这个值

Transfer rate: 1436.37 [Kbytes/sec] received

Connection Times (ms)

min mean[+/-sd] median max

Connect: 0 4 13.8 0 112

Processing: 4 521 692.1 248 4807

Waiting: 4 521 692.1 247 4807

Total: 4 526 696.6 248 4847

Percentage of the requests served within a certain time (ms)

50% 248

66% 458

75% 761

80% 964

90% 1346

95% 1901

98% 2840

99% 3301

100% 4847 (longest request)

[root@localhost pma]#

测的时候打开正常的网页看看能不能打开

http://www.b.net/pma/index.php

马哥这边打不开了

Xcache 能至少加速30%

马哥的 cpu 太忙了

压力测试工具

ab apache服务器自带的常用的工具差不多挺好用的

http_load 专门的第三方工具,网上搜一个进程模拟并发测试? 下载编译安装,编译过程很简单

webbench 多个进程模拟并发测试? 有时模拟太多的话对本客户机也有压力?

siege

怎么能够实现编译安装的apache 启用 https的功能

[root@localhost ~]# vim /etc/httpd/httpd.conf

.............................................

LoadModule ssl_module modules/mod_ssl.so #启用 https 的ssl 模块

.............................................

Include /etc/httpd/extra/httpd-ssl.conf #配置文件启用起来

.............................................

[root@localhost ~]# vim /etc/httpd/extra/httpd-ssl.conf

# 涉及到端口加密算法 PassPhraseDialog

# This is the Apache server configuration file providing SSL support.

# It contains the configuration directives to instruct the server how to

# serve pages over an https connection. For detailed information about these

# directives see <URL:http://httpd.apache.org/docs/2.4/mod/mod_ssl.html>

# Do NOT simply read the instructions in here without understanding

# what they do. They're here only as hints or reminders. If you are unsure

# consult the online docs. You have been warned.

# Required modules: mod_log_config, mod_setenvif, mod_ssl,

# socache_shmcb_module (for default value of SSLSessionCache)

# Pseudo Random Number Generator (PRNG):

# Configure one or more sources to seed the PRNG of the SSL library.

# The seed data should be of good random quality.

# WARNING! On some platforms /dev/random blocks if not enough entropy

# is available. This means you then cannot use the /dev/random device

# because it would lead to very long connection times (as long as

# it requires to make more entropy available). But usually those

# platforms additionally provide a /dev/urandom device which doesn't

# block. So, if available, use this one instead. Read the mod_ssl User

# Manual for more details.

#SSLRandomSeed startup file:/dev/random 512

#SSLRandomSeed startup file:/dev/urandom 512

#SSLRandomSeed connect file:/dev/random 512

#SSLRandomSeed connect file:/dev/urandom 512

# When we also provide SSL we have to listen to the

# standard HTTP port (see above) and to the HTTPS port

# Note: Configurations that use IPv6 but not IPv4-mapped addresses need two

# Listen directives: "Listen [::]:443" and "Listen 0.0.0.0:443"

Listen 443

## SSL Global Context

## All SSL configuration in this context applies both to

## the main server and all SSL-enabled virtual hosts.

# SSL Cipher Suite:

# List the ciphers that the client is permitted to negotiate.

# See the mod_ssl documentation for a complete list.

SSLCipherSuite HIGH:MEDIUM:!aNULL:!MD5

# Speed-optimized SSL Cipher configuration:

# If speed is your main concern (on busy HTTPS servers e.g.),

# you might want to force clients to specific, performance

# optimized ciphers. In this case, prepend those ciphers

# to the SSLCipherSuite list, and enable SSLHonorCipherOrder.

# Caveat: by giving precedence to RC4-SHA and AES128-SHA

# (as in the example below), most connections will no longer

# have perfect forward secrecy - if the server's key is

# compromised, captures of past or future traffic must be

# considered compromised, too.

#SSLCipherSuite RC4-SHA:AES128-SHA:HIGH:MEDIUM:!aNULL:!MD5

#SSLHonorCipherOrder on

# Pass Phrase Dialog:

# Configure the pass phrase gathering process.

# The filtering dialog program (`builtin' is an internal

# terminal dialog) has to provide the pass phrase on stdout.

SSLPassPhraseDialog builtin

# Inter-Process Session Cache:

# Configure the SSL Session Cache: First the mechanism

# to use and second the expiring timeout (in seconds).

#SSLSessionCache "dbm:/usr/local/apache/logs/ssl_scache"

SSLSessionCache "shmcb:/usr/local/apache/logs/ssl_scache(512000)"

SSLSessionCacheTimeout 300

## SSL Virtual Host Context

# General setup for the virtual host

#DocumentRoot "/usr/local/apache/htdocs"

DocumentRoot "/www/a.org"

#ServerName www.example.com:443

ServerName www.a.org

ServerAdmin you@example.com

ErrorLog "/usr/local/apache/logs/error_log"

TransferLog "/usr/local/apache/logs/access_log"

# SSL Engine Switch:

# Enable/Disable SSL for this virtual host.

SSLEngine on

# Server Certificate:

# Point SSLCertificateFile at a PEM encoded certificate. If

# the certificate is encrypted, then you will be prompted for a

# pass phrase. Note that a kill -HUP will prompt again. Keep

# in mind that if you have both an RSA and a DSA certificate you

# can configure both in parallel (to also allow the use of DSA

# ciphers, etc.)

# Some ECC cipher suites (http://www.ietf.org/rfc/rfc4492.txt)

# require an ECC certificate which can also be configured in

# parallel.

#很显然 openssl 要建立一个CA ,CA要自签证书,客户端发起请求

#利用私匙生成证书签署请求,从私匙中提取公钥

SSLCertificateFile "/etc/httpd/server.crt" #这个要改证书文件

#SSLCertificateFile "/etc/httpd/server-dsa.crt"

#SSLCertificateFile "/etc/httpd/server-ecc.crt"

# Server Private Key:

# If the key is not combined with the certificate, use this

# directive to point at the key file. Keep in mind that if

# you've both a RSA and a DSA private key you can configure

# both in parallel (to also allow the use of DSA ciphers, etc.)

# ECC keys, when in use, can also be configured in parallel

SSLCertificateKeyFile "/etc/httpd/server.key" #这个要改私匙文件

#SSLCertificateKeyFile "/etc/httpd/server-dsa.key"

#SSLCertificateKeyFile "/etc/httpd/server-ecc.key"

# Server Certificate Chain:

# Point SSLCertificateChainFile at a file containing the

# concatenation of PEM encoded CA certificates which form the

# certificate chain for the server certificate. Alternatively

# the referenced file can be the same as SSLCertificateFile

# when the CA certificates are directly appended to the server

# certificate for convenience.

#SSLCertificateChainFile "/etc/httpd/server-ca.crt"

# Certificate Authority (CA):

# Set the CA certificate verification path where to find CA

# certificates for client authentication or alternatively one

# huge file containing all of them (file must be PEM encoded)

# Note: Inside SSLCACertificatePath you need hash symlinks

# to point to the certificate files. Use the provided

# Makefile to update the hash symlinks after changes.

#SSLCACertificatePath "/etc/httpd/ssl.crt"

#SSLCACertificateFile "/etc/httpd/ssl.crt/ca-bundle.crt"

# Certificate Revocation Lists (CRL):

# Set the CA revocation path where to find CA CRLs for client

# authentication or alternatively one huge file containing all

# of them (file must be PEM encoded).

# The CRL checking mode needs to be configured explicitly

# through SSLCARevocationCheck (defaults to "none" otherwise).

# Note: Inside SSLCARevocationPath you need hash symlinks

# to point to the certificate files. Use the provided

# Makefile to update the hash symlinks after changes.

#SSLCARevocationPath "/etc/httpd/ssl.crl"

#SSLCARevocationFile "/etc/httpd/ssl.crl/ca-bundle.crl"

#SSLCARevocationCheck chain

# Client Authentication (Type):

# Client certificate verification type and depth. Types are

# none, optional, require and optional_no_ca. Depth is a

# number which specifies how deeply to verify the certificate

# issuer chain before deciding the certificate is not valid.

#SSLVerifyClient require

#SSLVerifyDepth 10

# TLS-SRP mutual authentication:

# Enable TLS-SRP and set the path to the OpenSSL SRP verifier

# file (containing login information for SRP user accounts).

# Requires OpenSSL 1.0.1 or newer. See the mod_ssl FAQ for

# detailed instructions on creating this file. Example:

# "openssl srp -srpvfile /etc/httpd/passwd.srpv -add username"

#SSLSRPVerifierFile "/etc/httpd/passwd.srpv"

# Access Control:

# With SSLRequire you can do per-directory access control based

# on arbitrary complex boolean expressions containing server

# variable checks and other lookup directives. The syntax is a

# mixture between C and Perl. See the mod_ssl documentation

# for more details.

#<Location />

#SSLRequire ( %{SSL_CIPHER} !~ m/^(EXP|NULL)/ \

# and %{SSL_CLIENT_S_DN_O} eq "Snake Oil, Ltd." \

# and %{SSL_CLIENT_S_DN_OU} in {"Staff", "CA", "Dev"} \

# and %{TIME_WDAY} >= 1 and %{TIME_WDAY} <= 5 \

# and %{TIME_HOUR} >= 8 and %{TIME_HOUR} <= 20 ) \

# or %{REMOTE_ADDR} =~ m/^192\.76\.162\.[0-9]+$/

#</Location>

# SSL Engine Options:

# Set various options for the SSL engine.

# o FakeBasicAuth:

# Translate the client X.509 into a Basic Authorisation. This means that

# the standard Auth/DBMAuth methods can be used for access control. The

# user name is the `one line' version of the client's X.509 certificate.

# Note that no password is obtained from the user. Every entry in the user

# file needs this password: `xxj31ZMTZzkVA'.

# o ExportCertData:

# This exports two additional environment variables: SSL_CLIENT_CERT and

# SSL_SERVER_CERT. These contain the PEM-encoded certificates of the

# server (always existing) and the client (only existing when client

# authentication is used). This can be used to import the certificates

# into CGI scripts.

# o StdEnvVars:

# This exports the standard SSL/TLS related `SSL_*' environment variables.

# Per default this exportation is switched off for performance reasons,

# because the extraction step is an expensive operation and is usually

# useless for serving static content. So one usually enables the

# exportation for CGI and SSI requests only.

# o StrictRequire:

# This denies access when "SSLRequireSSL" or "SSLRequire" applied even

# under a "Satisfy any" situation, i.e. when it applies access is denied

# and no other module can change it.

# o OptRenegotiate:

# This enables optimized SSL connection renegotiation handling when SSL

# directives are used in per-directory context.

#SSLOptions +FakeBasicAuth +ExportCertData +StrictRequire

SSLOptions +StdEnvVars

</FilesMatch>

SSLOptions +StdEnvVars

</Directory>

# SSL Protocol Adjustments:

# The safe and default but still SSL/TLS standard compliant shutdown

# approach is that mod_ssl sends the close notify alert but doesn't wait for

# the close notify alert from client. When you need a different shutdown

# approach you can use one of the following variables:

# o ssl-unclean-shutdown:

# This forces an unclean shutdown when the connection is closed, i.e. no

# SSL close notify alert is sent or allowed to be received. This violates

# the SSL/TLS standard but is needed for some brain-dead browsers. Use

# this when you receive I/O errors because of the standard approach where

# mod_ssl sends the close notify alert.

# o ssl-accurate-shutdown:

# This forces an accurate shutdown when the connection is closed, i.e. a

# SSL close notify alert is send and mod_ssl waits for the close notify

# alert of the client. This is 100% SSL/TLS standard compliant, but in

# practice often causes hanging connections with brain-dead browsers. Use

# this only for browsers where you know that their SSL implementation

# works correctly.

# Notice: Most problems of broken clients are also related to the HTTP

# keep-alive facility, so you usually additionally want to disable

# keep-alive for those clients, too. Use variable "nokeepalive" for this.

# Similarly, one has to force some clients to use HTTP/1.0 to workaround

# their broken HTTP/1.1 implementation. Use variables "downgrade-1.0" and

# "force-response-1.0" for this.

BrowserMatch "MSIE [2-5]" \

nokeepalive ssl-unclean-shutdown \

downgrade-1.0 force-response-1.0

# Per-Server Logging:

# The home of a custom SSL log file. Use this when you want a

# compact non-error SSL logfile on a virtual host basis.

CustomLog "/usr/local/apache/logs/ssl_request_log" \

"%t %h %{SSL_PROTOCOL}x %{SSL_CIPHER}x \"%r\" %b"

</VirtualHost>

马哥说 SSL一个IP只能建立一个主机,因为SSL会话是基于IP地址来实现的?但是现在己经可以多个了

弄好了 httpd-ssl.conf后,重启web服务器即可

[root@localhost extra]# cd /etc/httpd/extra/

[root@localhost extra]# pwd

/etc/httpd/extra

[root@localhost extra]# ls

httpd-autoindex.conf httpd-languages.conf httpd-ssl.conf

httpd-dav.conf httpd-manual.conf httpd-userdir.conf

httpd-default.conf httpd-mpm.conf httpd-vhosts.conf

httpd-info.conf httpd-multilang-errordoc.conf proxy-html.conf

[root@localhost extra]#

[root@localhost extra]# vim httpd-mpm.conf

#定义每一种不同的mpm的工作参数的

#默认情况下 rpm安装时在主配置文件 httpd.conf中提供的

# prefork MPM

# StartServers: number of server processes to start

# MinSpareServers: minimum number of server processes which are kept spare

# MaxSpareServers: maximum number of server processes which are kept spare

# MaxRequestWorkers: maximum number of server processes allowed to start

# MaxConnectionsPerChild: maximum number of connections a server process serves

# before terminating

StartServers 5

MinSpareServers 5

MaxSpareServers 10

MaxRequestWorkers 250

MaxConnectionsPerChild 0

</IfModule>

# worker MPM

# StartServers: initial number of server processes to start

# MinSpareThreads: minimum number of worker threads which are kept spare

# MaxSpareThreads: maximum number of worker threads which are kept spare

# ThreadsPerChild: constant number of worker threads in each server process

# MaxRequestWorkers: maximum number of worker threads

# MaxConnectionsPerChild: maximum number of connections a server process serves

# before terminating

StartServers 3

MinSpareThreads 75

MaxSpareThreads 250

ThreadsPerChild 25

MaxRequestWorkers 400

MaxConnectionsPerChild 0

</IfModule>

# event MPM

# StartServers: initial number of server processes to start

# MinSpareThreads: minimum number of worker threads which are kept spare

# MaxSpareThreads: maximum number of worker threads which are kept spare

# ThreadsPerChild: constant number of worker threads in each server process

# MaxRequestWorkers: maximum number of worker threads

# MaxConnectionsPerChild: maximum number of connections a server process serves

# before terminating

StartServers 3

MinSpareThreads 75

MaxSpareThreads 250

ThreadsPerChild 25

MaxRequestWorkers 400

MaxConnectionsPerChild 0

</IfModule>

# NetWare MPM

# ThreadStackSize: Stack size allocated for each worker thread

# StartThreads: Number of worker threads launched at server startup

# MinSpareThreads: Minimum number of idle threads, to handle request spikes

# MaxSpareThreads: Maximum number of idle threads

# MaxThreads: Maximum number of worker threads alive at the same time

# MaxConnectionsPerChild: Maximum number of connections a thread serves. It

# is recommended that the default value of 0 be set

# for this directive on NetWare. This will allow the

# thread to continue to service requests indefinitely.

ThreadStackSize 65536

StartThreads 250

MinSpareThreads 25

MaxSpareThreads 250

MaxThreads 1000

MaxConnectionsPerChild 0

</IfModule>

改里面的值观察

top 命令下的cpu

vmstat 命令

[root@localhost extra]# vmstat 1

# cs 上下文切换的次数

# bi bo si so 看看开启日志的时候,bi bo 变化量大

# bi bo : io 上从磁盘载入的个数和写入到磁盘上的个数

procs -----------memory---------- ---swap-- -----io---- --system-- -----cpu------

r b swpd free buff cache si so bi bo in cs us sy id wa st

0 0 12 574432 10344 174436 0 0 4 2 30 130 0 0 100 0 0

0 0 12 574432 10352 174428 0 0 0 36 915 235 0 0 100 0 0

0 0 12 574432 10352 174436 0 0 0 0 851 222 0 1 99 0 0

0 0 12 574432 10352 174436 0 0 0 0 883 265 0 1 99 0 0

[root@localhost ~]# /usr/local/apache/bin/ab -c 1000 -n 10000 http://www.a.org/t est.html

This is ApacheBench, Version 2.3 <$Revision: 1430300 $>

Licensed to The Apache Software Foundation, http://www.apache.org/

Benchmarking www.a.org (be patient)

Completed 1000 requests

Completed 2000 requests

Completed 3000 requests

Completed 4000 requests

Completed 5000 requests

Completed 6000 requests

Completed 7000 requests

Completed 8000 requests

Completed 9000 requests

Completed 10000 requests

Finished 10000 requests

Server Software: Apache/2.4.4

Server Hostname: www.a.org

Server Port: 80

Document Path: /test.html

Document Length: 147168 bytes

Concurrency Level: 1000

Time taken for tests: 3.086 seconds

Complete requests: 10000

Failed requests: 0

Write errors: 0

Total transferred: 1474290000 bytes

HTML transferred: 1471680000 bytes

Requests per second: 3240.43 [#/sec] (mean)

Time per request: 308.601 [ms] (mean)

Time per request: 0.309 [ms] (mean, across all concurrent requests)

Transfer rate: 466536.96 [Kbytes/sec] received

Connection Times (ms)

min mean[+/-sd] median max

Connect: 0 9 11.7 5 66

Processing: 16 167 141.1 160 3020

Waiting: 1 41 134.2 13 3020

Total: 20 176 149.1 167 3086

Percentage of the requests served within a certain time (ms)

50% 167

66% 172

75% 174

80% 178

90% 198

95% 366

98% 798

99% 832

100% 3086 (longest request)

[root@localhost ~]#

另一窗口中看看 # vmstat 1

[root@localhost extra]# vmstat 1

马哥的图

普通分类:

linux

You are here

友情链接

搜索表单

用户登录

You are here

马哥 24_03 _编译安装LAMP之php-5.4.13、xcache-2.0及使用ab命令实现压力测试【攻城狮论坛の免费分享】 有大用

友情链接

马哥 24_03 _编译安装LAMP之php-5.4.13、xcache-2.0及使用ab命令实现压力测试【攻城狮论坛の免费分享】有大用
