nginx 502 bad gateway 记录一次 upstream prematurely closed connection while reading response header from upstream 有大用 有大大用

来自Nginx的错误表明您的上游服务器已关闭连接,最好检查后端服务器配置


记录一次 upstream prematurely closed connection while reading response header from upstream


今天在做一次推送消息的时候,发现好多数据推送不成功,nginx 的日志文件里,返回很多以下错误,我用的环境是 nginx + php7

2018/09/20 16:55:53 [error] 22050#0: *6840 upstream prematurely closed connection while reading response header from upstream, client: 127.0.0.1, server: localhost, request: "GET /1.php HTTP/1.0", upstream: "fastcgi://127.0.0.1:9000", host: "127.0.0.1"
2018/09/20 16:55:55 [error] 22050#0: *6835 upstream prematurely closed connection while reading response header from upstream, client: 127.0.0.1, server: localhost, request: "GET /1.php HTTP/1.0", upstream: "fastcgi://127.0.0.1:9000", host: "127.0.0.1"
2018/09/20 16:56:01 [error] 22052#0: *6132 upstream prematurely closed connection while reading response header from upstream, client: 127.0.0.1, server: localhost, request: "GET /1.php HTTP/1.0", upstream: "fastcgi://127.0.0.1:9000", host: "127.0.0.1"
2018/09/20 16:56:01 [error] 22052#0: *7067 upstream prematurely closed connection while reading response header from upstream, client: 127.0.0.1, server: localhost, request: "GET /1.php HTTP/1.0", upstream: "fastcgi://127.0.0.1:9000", host: "127.0.0.1"
2018/09/20 16:12:51 [error] 5395#0: *44785 upstream timed out (110: Connection timed out) while connecting to upstream, client: 127.0.0.1, server: localhost, request: "GET /1.php HTTP/1.0", upstream: "fastcgi://127.0.0.1:9000", host: "127.0.0.1"
2018/09/20 16:12:51 [error] 5395#0: *44786 upstream timed out (110: Connection timed out) while connecting to upstream, client: 127.0.0.1, server: localhost, request: "GET /1.php HTTP/1.0", upstream: "fastcgi://127.0.0.1:9000", host: "127.0.0.1"

错误信息大概是“上游服务关闭,读取数据失败”,当消息小的时候,却不会有这样的错误,可能是并发造成的。于是做一下 ab 测试

ab -n 1000 -c 200 http://127.0.0.1/1.php

好吧,200个并发时,出现了大量的错误信息,总体上是两个错误,即:

# 错误1

upstream prematurely closed connection while reading response header from upstream

# 错误2

upstream timed out (110: Connection timed out) while connecting to upstream

解决错误1

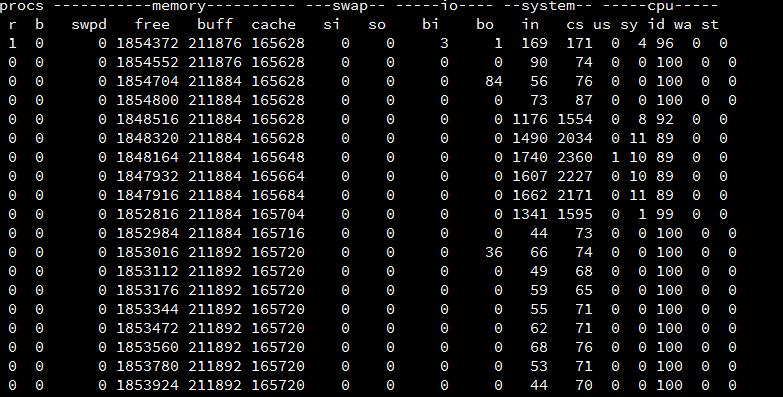

首先想到的,既然是并发才会出现此问题,那是不是系统已经到达瓶颈了呢?(本地环境,从来没有做过优化),vmstat 一下,如图:


发现什么内存、IO、CPU没有什么压力的,vmstat 命令的使用,可以去 vmstat 查看

既然不是服务器本身的问题,就是软件配置或代码的问题了,问题是“上游提前关闭”,应该是出在 php-fpm 上,打开 php-fpm.log 日志文件(默认在PHP的安装目录下的 var/log/php-fpm.log 位置)

(   难道对CGI来说  就是 修改php的 set_time_limit(0);  ini_set("max_execution_time", 0);  就不会上游提前关闭了  )

[20-Sep-2018 16:55:28] WARNING: [pool www] seems busy (you may need to increase pm.start_servers, or pm.min/max_spare_servers), spawning 32 children, there are 0 idle, and 13 total children
[20-Sep-2018 16:55:29] WARNING: [pool www] seems busy (you may need to increase pm.start_servers, or pm.min/max_spare_servers), spawning 32 children, there are 0 idle, and 14 total children
[20-Sep-2018 16:55:30] WARNING: [pool www] seems busy (you may need to increase pm.start_servers, or pm.min/max_spare_servers), spawning 32 children, there are 0 idle, and 15 total children
[20-Sep-2018 16:55:31] WARNING: [pool www] seems busy (you may need to increase pm.start_servers, or pm.min/max_spare_servers), spawning 32 children, there are 0 idle, and 16 total children
[20-Sep-2018 16:56:20] WARNING: [pool www] seems busy (you may need to increase pm.start_servers, or pm.min/max_spare_servers), spawning 8 children, there are 0 idle, and 20 total children
[20-Sep-2018 16:56:21] WARNING: [pool www] seems busy (you may need to increase pm.start_servers, or pm.min/max_spare_servers), spawning 16 children, there are 0 idle, and 21 total children
[20-Sep-2018 16:56:22] WARNING: [pool www] seems busy (you may need to increase pm.start_servers, or pm.min/max_spare_servers), spawning 32 children, there are 0 idle, and 22 total children

有好多这种警告,虽然警告,但是也是很严重的,说是让修改 start_servers 这些参数,先修改看下再说,打开 etc/php-fpm.d/www.conf

; This value sets the limit on the number of simultaneous requests that will be
; served. Equivalent to the ApacheMaxClients directive with mpm_prefork.
; Equivalent to the PHP_FCGI_CHILDREN environment variable in the original PHP
; CGI. The below defaults are based on a server without much resources. Don't
; forget to tweak pm.* to fit your needs.
; Note: Used when pm is set to 'static', 'dynamic' or 'ondemand'
; Note: This value is mandatory.
pm.max_children = 1024     ; 修改成 1024 根据实际情况来修改,我这是本地环境,先随便增加

; The number of child processes created on startup.
; Note: Used only when pm is set to 'dynamic'
; Default Value: min_spare_servers + (max_spare_servers - min_spare_servers) / 2
pm.start_servers = 512    ; 修改成 512 根据实际情况来修改,我这是本地环境,先随便增加

; The desired minimum number of idle server processes.
; Note: Used only when pm is set to 'dynamic'
; Note: Mandatory when pm is set to 'dynamic'
pm.min_spare_servers = 4   ; 修改成 4 根据实际情况来修改,我这是本地环境,先随便增加

; The desired maximum number of idle server processes.
; Note: Used only when pm is set to 'dynamic'
; Note: Mandatory when pm is set to 'dynamic'
pm.max_spare_servers = 512  ; 修改成 512 根据实际情况来修改,我这是本地环境,先随便增加

然后重启 php-fpm,再后再做一次 ab 压力测试,发现上面的问题已经不存在了,看来真的是这儿出问题了,那这些参数是什么意思呢

php-fpm 进程池开启进程有两种方式:

  • static,直接开启指定数量的php-fpm进程,不再增加或者减少。

  • dynamic,开始时开启一定数量的php-fpm进程,当请求量变大时,动态的增加php-fpm进程数到上限,当空闲时自动释放空闲的进程数到一个下限

要用到的一些参数,分别是pm、pm.max_children、pm.start_servers、pm.min_spare_servers和pm.max_spare_servers。

pm 表示使用那种方式,有两个值可以选择,就是static(静态)或者dynamic(动态)

pm.max_children:静态方式下开启的php-fpm进程数量,在动态方式下他限定php-fpm的最大进程数(这里要注意pm.max_spare_servers的值只能小于等于pm.max_children)

pm.start_servers:动态方式下的起始php-fpm进程数量。

pm.min_spare_servers:动态方式空闲状态下的最小php-fpm进程数量。

pm.max_spare_servers:动态方式空闲状态下的最大php-fpm进程数量。

如果pm设置为static,那么其实只有pm.max_children这个参数生效。系统会开启参数设置数量的php-fpm进程。

如果pm设置为dynamic,4个参数都生效。系统会在php-fpm运行开始时启动pm.start_servers个php-fpm进程,然后根据系统的需求动态在pm.min_spare_servers和pm.max_spare_servers之间调整php-fpm进程数。

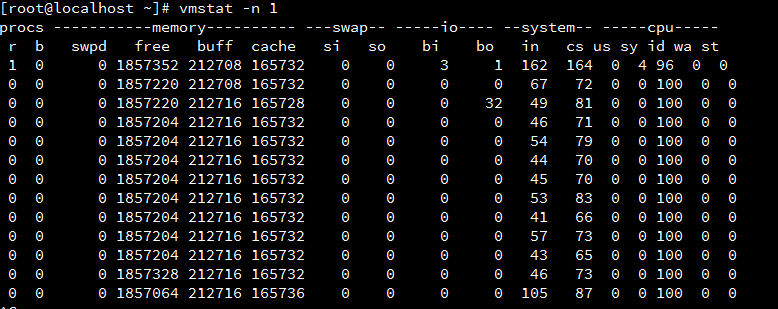

特别说一下,这些参数要根据实际情况来修改,增大之后会增加CPU的压力,如图


解决错误2

这种错误是经常出现的,一般出现,nginx 都会返回 502 或 504。但是,导致这种错误的原因也很多,以我现在的情况为例,把第1个问题解决好之后,这个也没有出现了。

网上也有这种答案,比如告诉要配置,以下参数

...
location / {
    proxy_connect_timeout 159s;
    proxy_send_timeout   600;
    proxy_read_timeout   600;
    proxy_buffer_size    64k;
    proxy_buffers     16 32k;
    proxy_busy_buffers_size 64k;
    proxy_temp_file_write_size 64k;
    proxy_pass_header Set-Cookie;
    proxy_redirect     off;
    proxy_hide_header  Vary;
    proxy_set_header   Accept-Encoding '';
    proxy_ignore_headers Cache-Control Expires;
    proxy_set_header   Referer $http_referer;
    proxy_set_header   Host   $host;
    proxy_set_header   Cookie $http_cookie;
    proxy_set_header   X-Real-IP  $remote_addr;

    ....
}
...

另外,可以把 PHP 的慢日志暂时打开,可以看一些哪些程序执行慢,我也是第一次用到PHP中的慢日志,修改

; The log file for slow requests
; Default Value: not set
; Note: slowlog is mandatory if request_slowlog_timeout is set
slowlog = log/$pool.log.slow          ; 这一行打开,日志的存放位置,如果不存在 log 目录,需要手动创建

; The timeout for serving a single request after which a PHP backtrace will be
; dumped to the 'slowlog' file. A value of '0s' means 'off'.
; Available units: s(econds)(default), m(inutes), h(ours), or d(ays)
; Default Value: 0
request_slowlog_timeout = 25s        ; 请求时间,超过此时间的都会被记录下
