ngx_realtime_request是nginx用来统计虚拟主机流量的模块, 首先和大家说下这个模块是基于域名的,将会记录这个域名的请求量、发送字节、返回http状态码的数量,特性如下:
1 | # cd /usr/local/src/ |
2 | # wget "http://nginx.org/download/nginx-1.4.2.tar.gz" |
3 | # tar -xzvf nginx-1.4.2.tar.gz |
4 | # wget https://github.com/magicbear/ngx_realtime_request_module/archive/master.zip -O ngx_realtime_request.zip |
5 | # unzip ngx_realtime_request.zip |
6 | # cd nginx-1.4.2/ |
7 | # ./configure --prefix=/usr/local/nginx-1.4.2 --add-module=../ngx_realtime_request_module-master |
8 | # make |
9 | # make install |
realtime_zonesize
语法: realtime_zonesize size
默认值: 4m
配置块: http
设置slab大小
realtime_request
语法: realtime_request [on/off]
默认值: none
配置块: location
开启统计
1 | http { |
2 | realtime_zonesize 16m; |
3 |
4 | server { |
5 | server_name www.ttlsa.com |
6 | location ~ /ttlsa-rt-status { |
7 | realtime_request on; |
8 | } |
9 | } |
10 | } |
访问http://www.ttlsa.com几次,制造几个404和200等等

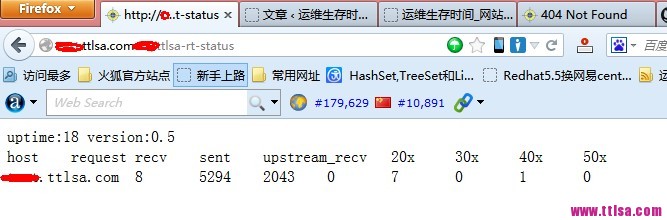

查看状态http://www.ttlsa.com/ttlsa-rt-status如下图
上图解释:
uptime:18 ->nginx运行了18秒
version:0.5 -> 当前插件版本
host:当前统计的域名,如果这台服务器有多个域名,会显示多行
request:请求量8个
recv:接收5294字节
send:发送2043字节
20x:响应了7次20x的状态码
30x:返回了0次30x
40x:返回了1次40xhttp状态码(我测试的404)
50x:返回了0次50x
如下版本已做测试
1.3.x (tested with 1.3.6 to 1.3.15).
1.4.2 运维时间用这个版本做了测试
项目地址:https://github.com/magicbear/ngx_realtime_request_module
参考文档:http://www.ttlsa.com/nginx/nginx-modules-ngx_realtime_request_module/
