jQuery Touchwipe Plugin 轻量级的手机触摸特效插件(javascript)

shiping1 的头像
上次写的文章《手机触屏触摸特效javascript-TouchSwipe(依赖于jqurey库)中文说明》这个插件比较坑,笔者研究了一天后没想到这款插件竟然是不支持a标记的,太坑了,无奈之下,又找了一个比较轻量级的插件,也很简单,功能也很实用大小仅仅只有1.2K。。

这款插件的事件比上一篇文章的插件少的多的多,只有简单的上下左右滑动,但是基本上也就是这几个特效,而且插件非常小,非常适合做网站。
下面是官方demo:

1
2
3
4
5
6
7
8
9
$(“#imagegallery”).touchwipe({
wipeLeft:function(){alert(“left”);},
wipeRight:function(){alert(“right”);},
wipeUp:function(){alert(“up”);},
wipeDown:function(){alert(“down”);},
min_move_x:20,
min_move_y:20,
preventDefaultEvents:true
});

怎么样,很简单吧:
wipeLeft:向左滑动
wipeRight:向右滑动
wipeUp:测试了以下。。貌似是从上往下滑动。。 我手机的问题么。
wipeDown:这个貌似从下往上滑动。如果有人不一样的话,回复以下。
min_move_x:最小滑动X轴距离。
min_move_y:最小滑动y轴距离。
preventDefaultEvents:preventDefault 被设为 true 时,滑动手势的默认事件(例如页面滚动)会被屏蔽,只执行 wipeLeft: … wipeRight: … 所限定的内容。 (感谢评论者Renfei Song的补充)

下面是我写的一个简单的例子:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
<script type=”text/javascript” src=”http://www.netcu.de/templates/netcu/js/jquery-1.4.2.min.js”></script>
<script type=”text/javascript” src=”http://www.netcu.de/templates/netcu/js/jquery.touchwipe.js”></script>
<script type=”text/javascript”>
var MyMar = setInterval(Marquee, 3000);
var pic_width = 320
a = 0
function Marquee(){
a++
if(a>2){a=0}
$(".focus_pic .kd").css("-webkit-transform","translateX(-"+a*pic_width+"px)")
}
$(".focus_pic .kd").touchwipe( {
wipeLeft:function(){
if(a>1){ return(false)}else {
$(".focus_pic .kd").css("-webkit-transform","translateX(-"+(a+1)*pic_width+"px)");
a=a+1
}},
wipeRight:function(){
if(a<0){ return(false)}else{
$(".focus_pic .kd").css("-webkit-transform","translateX(-"+(a-1)*pic_width+"px)");
a=a-1
}
},
min_move_x: 20,
min_move_y: 20,
preventDefaultEvents: true
});
</script>
<div class=”focus_pic”>
<div class=”kd”>
 <a href=”#”><img src=”http://www.zb580.tv/upload/2013/2/19/logo.jpg” alt=”" /></a>
 <a href=”#”><img src=”http://www.zb580.tv/upload/2013/3/22/ylss–logo.jpg” alt=”" /></a>
 <a href=”#”><img src=”http://www.zb580.tv/upload/2012/12/14/shn–logo(1).jpg” alt=”" /></a>
</div>
</div>

官方下载网址:http://www.netcu.de/jquery-touchwipe-iphone-ipad-library

来自 http://www.8abd.com/?p=586



手机触屏触摸特效javascript-TouchSwipe(依赖于jquery库)中文说明







最近需要做一个手机小门户网站,因为目前主流的手机都是安卓和苹果的,他们的浏览器内核都是webkit,这就意味着手机网站是可以用html5和css3开发的,越开发越感觉到html5和css3的强大与它的重要性,且不谈html5和css3,做网站的时候遇到了一个大问题,就是触摸js的问题,以前都是写的电脑端的js,突然接触到触摸屏的js可真是脑袋大了,因为手机网站属于初期,即使你有问题也在互联网上很难找得到,后来就在这个文章上找到了关于触摸屏的js插件《43个处理触摸事件的jquery插件》,最后找了一个自己觉得不错的插件——TouchSwipe,TouchSwipe是依赖于jquery的,而这个插件也没有中文资料,那我今天就整理一下他的相关信息及教程。

注意:此插件虽好,但是需要注意的是如果手指事件会在a标签超链接内失效,笔者做了一个焦点图,如果图片上有A标记的话会失效,所以在官方没有改正之前,还是放弃吧。。。。(另一个手机触摸插件jQuery Touchwipe Plugin 轻量级的手机触摸特效插件(javascript)

事件:

滑动事件:

swipe (事件,滑动的方向,滑动的距离,一次滑动的时间 , 几根手指)

滑动事件还有 方法和上面相同 swipeLift – 向左滑动  swipeRight-向右滑动 swipeUp-向上滑动  swipeDown-向下滑动

swipeStatus (事件, 手指状态,滑动的方向,滑动的距离,一次滑动的时间 , 几根手指)

swipeStatus 和 swipe 不同的是 这个参数是一直在执行的,大家可以看看下面的例子(复制到记事本上打开即可),来了解一下两个事件的不同之处。

两根手指往里捏或者扩张事件:

pinchStatus(事件,手指状态 ,方向(in和out,需要注意的一点in是往外扩,out是往里捏),滑动的距离, 一次滑动的时间 , 几根手指, 变焦)

包含:pinchIn(向外扩张),pinchOut (向里捏)

其他常用事件还有:doubleTap (双击屏幕) click (单击屏幕) longTap (长按屏幕)

滑动事件demo:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=gb2312" />
<title>无标题文档</title>
<script type="text/javascript" src="http://www.163css.com/myweb/hihilinxuan/template/hihilinxuan/cssjs/2012/12/ifengtouch/js/jquery.min.js"></script>
<script type="text/javascript" src="http://www.163css.com/myweb/hihilinxuan/template/hihilinxuan/cssjs/2012/12/ifengtouch/js/jquery.touchSwipe.min.js"></script>
<script>
$(function() {
//swipe 的dome
$("#test").swipe( {
swipe:function(event, direction, distance, duration, fingerCount) {
$(this).text("你用"+fingerCount+"个手指以"+duration+"秒的速度向" + direction + "滑动了" +distance+ "像素 " );
},
});
//swipeStatus的dome
$("#test2").swipe( {
swipeStatus:function(event, phase, direction, distance, duration,fingerCount) {
$(this).text("你用"+fingerCount+"个手指以"+duration+"秒的速度向" + direction + "滑动了" +distance+ "像素 " +"你在"+phase+"中");
},
});
});
</script>
</head>
<body>
<div id="test" style="height:200px; background:#C63;-webkit-user-select:none; text-align:center; line-height:200px; color:#fff">swipe 的dome</div>
<div id="test2" style="height:200px; background:#C63; margin-top:20px;-webkit-user-select:none; text-align:center; line-height:200px; color:#fff">swipeStatus的dome</div>
</body>
</html>



移动端div内手指滑动内容效果,不出现滚动条:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
<br><br>$(function () {
    //手机滑动效果
    var swiptleft = 0;
    var swiptw = $(".touchswipe").width() - $(".borrowlistcon .block").eq(0).width();
    $(".touchswipe").swipe({
        swipeLeft: function (event, direction, distance, duration, fingerCount) {
            swiptleft = swiptleft - distance;
            if (swiptleft > swiptw) {
                $(".touchswipe .block").animate({
                    left: swiptleft + 'px'
                }, 10)
            }
            else {
                swiptleft = swiptw;
                $(".touchswipe .block").animate({
                    left: swiptw + 'px'
                }, 10)
            }

        },

        swipeRight : function (event, direction, distance, duration, fingerCount) {
                swiptleft = swiptleft + distance;
                if (swiptleft < 0) {
                    $(".touchswipe .block").animate({
                        left: swiptleft + 'px'
                    }, 10)
                }
                else {
                    swiptleft = 0;
                    $(".touchswipe .block").animate({
                        left: 0 + 'px'
                    }, 10)
                }

    }
    });

})





官方网站

http://labs.rampinteractive.co.uk/touchSwipe/demos/

英文说明地址:

http://labs.rampinteractive.co.uk/touchSwipe/docs/symbols/%24.fn.swipe.html

下载地址

https://github.com/mattbryson/TouchSwipe-Jquery-Plugin





现在有那么多的设备支持触摸事件,你没有理由不去丰富你的UI交互功能。

开发背景

TouchSwipe原本是为Renault 设计的,是在一个IPad的专题网站上展示一个汽车的相册,这个插件可以让用户触摸操作幻灯片的播放,例如up/down或者是left/right,当时(2010)jQuery移动开发还处于起步阶段,所以我们决定编写自己的插件将触摸事件jQuery。

特点

  • Detects swipes in 4 directions, “up”, “down”, “left” and “right”
  • Detects pinches “in” and “out”
  • Supports single finger or double finger touch events
  • Supports click events both on the touchSwipe object and its child objects
  • Definable threshold / maxTimeThreshold to determin when a gesture is actually a swipe
  • Events triggered for swipe “start”,”move”,”end” and “cancel”
  • End event can be triggered either on touch release, or as soon as threshold is met
  • Allows swiping and page scrolling
  • Disables user input elements (Button, form, text etc) from triggering swipes

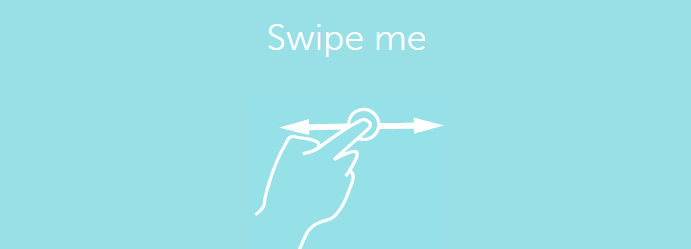

Swipe

在它最基本的,该插件将添加一部Swipe检测使用Swipe处理程序,你可以发现哪个方向用户Swipe。

$("#swipe").swipe({
  swipe:function(event, direction, distance, duration, fingerCount) {
    $(this).text("You swiped " + direction );
  }
});

TouchSwipe移动手势触摸交互开发的jQuery插件

为了方便我们添加处理程序,只有在一个特定方向触发:swipeLeft, swipeRight, swipeUp, swipeDown,每种都通过了以下的论点:event, direction, distance, duration, fingerCount.

$("#swipe").swipe({
  swipeLeft:function(event, direction, distance, duration, fingerCount) {
    //This only fires when the user swipes left
  }
});

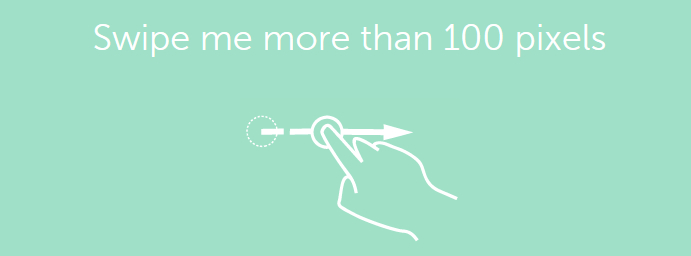

距离阈值

确保动作是一种故意swipe,最小距离阈值被添加,默认是75px。如果用户移动小于然后swipe[Direction] 的处理是不触发。

$("#threshold").swipe({
  swipe:function(event, direction, distance, duration, fingerCount){
    $(this).text("You swiped " + direction + " for " + distance + "px" );
  },
  threshold:100
});

TouchSwipe移动手势触摸交互开发的jQuery插件

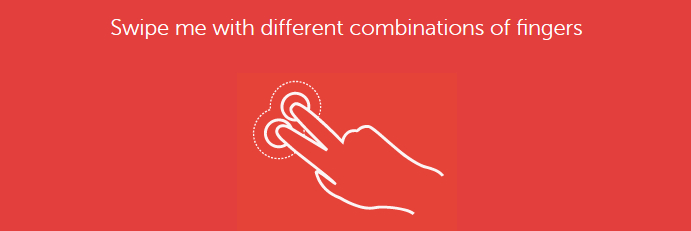

Fingers

我们还可以限制swipe只触发1或“所有”组合的手指,用手指的value,0用手指将报告如果运行在非触摸设备(桌面)。

$("#fingers").swipe({
  swipe:function(event, direction, distance, duration, fingerCount){
    $(this).text("You swiped " + direction + " with " + fingerCount + " fingers" );
  },
  fingers:'all'
});

TouchSwipe移动手势触摸交互开发的jQuery插件

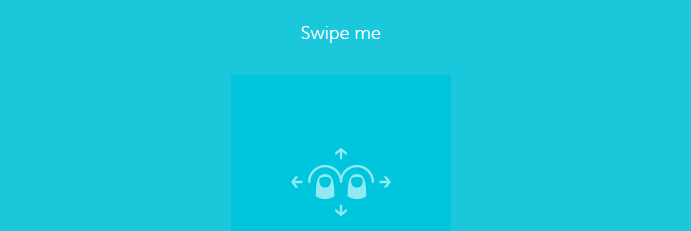

Swipe Status

为了使更多的复杂界面的相互作用,也可以用于swipe每个阶段接收事件,使用swipeStatus处理程序。

$("#status").swipe( {
swipeStatus:function(event, phase, direction, distance, duration, fingerCount)
{
  //Here we can check the:
  //phase : 'start', 'move', 'end', 'cancel'
  //direction : 'left', 'right', 'up', 'down'
  //distance : Distance finger is from initial touch point in px
  //duration : Length of swipe in MS
  //fingerCount : the number of fingers used
  },
  threshold:100,
  maxTimeThreshold:2500,
  fingers:'all'
});

TouchSwipe移动手势触摸交互开发的jQuery插件

Simple image scroller demo

这个简单的例子使用刷卡状态检测当用户是移动的,但尚未达到滑动阈值,图像拖动直到达到阈值,并滚动到下一个图像,如果刷卡没有完成,图像会回到它开始的地方。

TouchSwipe移动手势触摸交互开发的jQuery插件

滑动事件

  • swipe (事件,滑动的方向,滑动的距离,一次滑动的时间 , 几根手指),滑动事件还有 方法和上面相同 swipeLift – 向左滑动  swipeRight-向右滑动 swipeUp-向上滑动  swipeDown-向下滑动。
  • swipeStatus (事件, 手指状态,滑动的方向,滑动的距离,一次滑动的时间 , 几根手指),swipeStatus 和 swipe 不同的是 这个参数是一直在执行的,大家可以看看下面的例子(复制到记事本上打开即可),来了解一下两个事件的不同之处。
  • 两根手指往里捏或者扩张事件:pinchStatus(事件,手指状态 ,方向(in和out,需要注意的一点in是往外扩,out是往里捏),滑动的距离, 一次滑动的时间 , 几根手指, 变焦)
  • 包含:pinchIn(向外扩张),pinchOut (向里捏)
  • 其他常用事件还有:doubleTap (双击屏幕) click (单击屏幕) longTap (长按屏幕)

More info

For the source, documentation, detailed demos, or to contribute, see:


分类: html5+css3


#1楼 2014-11-14 14:28 从小就犯困
请问有没有分页的例子,就像新浪微博一下,用手指往下滑,会加载出另外的一些数据。

#2楼 2015-08-29 12:28 Guzhen
关于a标签失效的解决方法:
goodsList.swipe({
swipe: function (event, phase, direction, distance, duration, fingers) {
},
excludedElements: ""//排除元素
});
来自:淘课学院(http://www.taokeschool.com/

#3楼 2015-09-15 15:16 沧海伤田
楼主讲的很详细,但是对于我们初学者很费劲,要是能图文并茂深入讲解就好了,我给你推荐一个不错的博文。
玩转CSS3,嗨翻WEB前端,CSS3伪类元素详解/深入浅出[原创][5+3时代]


来自  http://www.cnblogs.com/aimyfly/p/3843977.html
